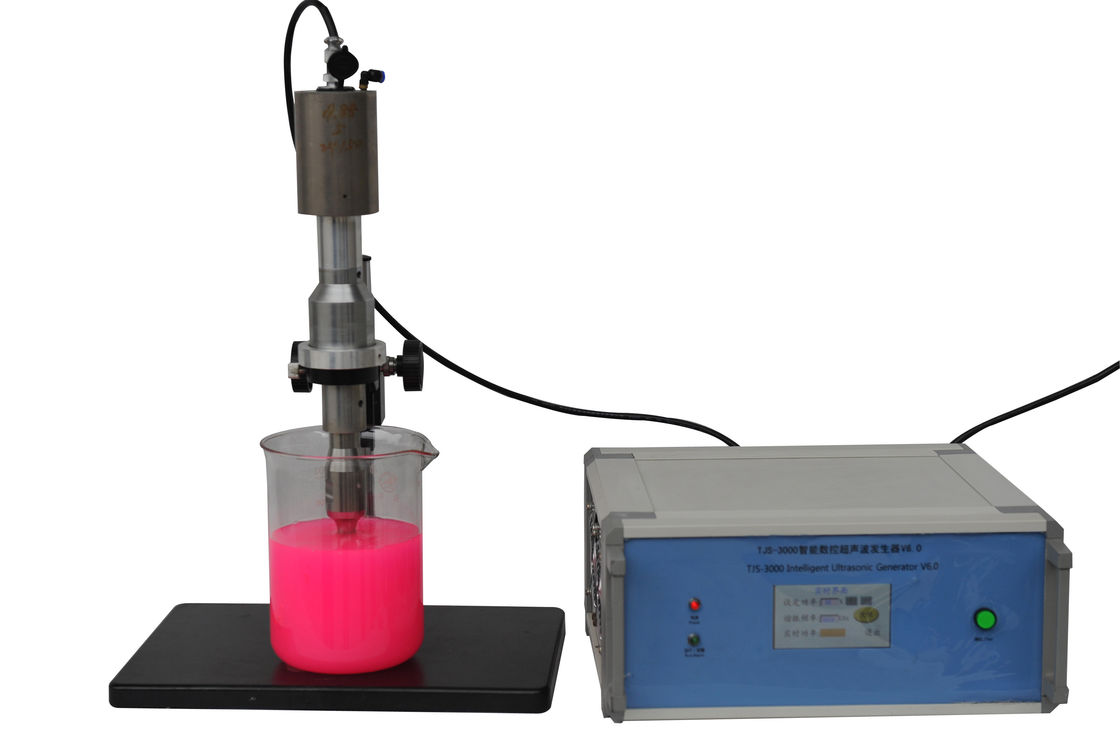

Ultrasonic High Pressure Homogeniser With Ultrasound Irradiation Permanent Controlled
|Frequency||40±1 KHz||20±1 KHz||20±1 KHz||20±1 KHz||20±1 KHz|
|Power||100 W||1000 W||1500 W||2000 W||3000 W|
|Voltage||220±10% V||220±10% V||220±10% V||220±10% V||220±10% V|
|Temperature||150 ℃||150 ℃||300 ℃||300 ℃||300 ℃|
|Pressure||Normal||Normal||35 MPa||35 MPa||35 MPa|
|Intensity of sound||＞10 W/cm²||＞10 W/cm²||＞30 W/cm²||＞40 W/cm²||＞60 W/cm²|
|Max Capacity||＞ 100M L/Min||＞ 5 L/Min||＞ 15 L/Min||＞ 20 L/Min||＞ 30 L/Min|
|Material Of Tip Head||Titanium Alloy||Titanium Alloy||Titanium Alloy||Titanium Alloy||Titanium Alloy|
Ultrasound creates acoustic cavitation, which produces violently imploding vacuum bubbles, causing shock waves, microjets and strong shear forces as well as extreme local temperatures (~5,000 K) and pressures (~1,000 atm). These extreme conditions result in exceptionally efficient mixing, yielding nanoemulsions with very small droplet sizes and enormous contact areas between all components.
Reaction Acceleration – cavitation accelerates chemical and physical reactions.
Dispersion – e.g. nanoparticle processing
Disruption and Cell Lysing – will break open biological tissues and
cells to extract enzymes and DNA, prepare vaccines.
This technology provides a method for
ultrasonically lysing cells and spores in a liquid flowing continuously or intermittently through a cylindrical reactor.

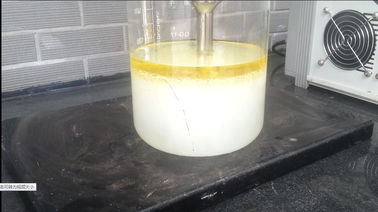

Homogenization – making uniform mixtures of liquids or liquid suspensions.
Emulsification – processing foods, pharmaceuticals, and cosmetics.
Dissolution – dissolving solids in solvents.
Degassing – removing gases from solutions without heat or vacuum.
Custom System Designs and Consulting:
Active Ultrasonics provides consulting services and custom reactor designs.
High amplitude probe flow cells
Unrestricted flow-through cylindrical systems
High Power Probe Sonicator
Custom sizes available for laboratory and high volume industrial applications.
