30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine

China 30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine supplier
30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine supplier 30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine supplier 30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine supplier 30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine supplier 30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine supplier

Large Image :  30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-3030-4Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Converter Power: 700
Ceramic Diameter: 30mm Capacitance: 6.2~6.9 Nf ,
Type: NTK Type Application: Welding

30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine

Specifications:



Model

HS-3030-4z

Frequency

30khz

Output power

700watt

Joint bolt

M10

Ceramic disc Diameter

30 mm

Quantity of Ceramic discs

4pcs

Capacitance

6.2~6.9 nf

Amplitude

6um

Application

Welding





Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Our transducer can applied in the following ultrasonic machines:

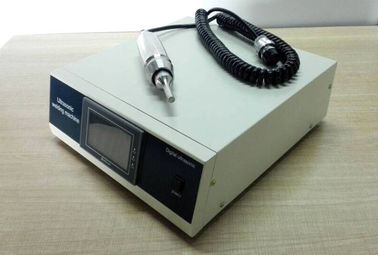

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

 it can welding the material more easy and stable.Such like plastic, fabric,

 ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.

Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

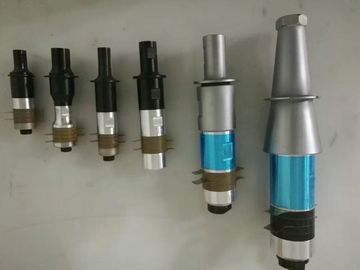

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



Competitive Advantage:



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

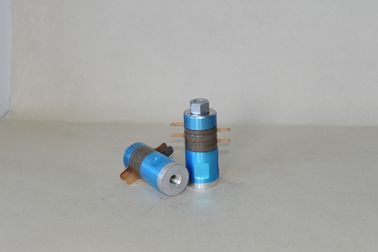

30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine

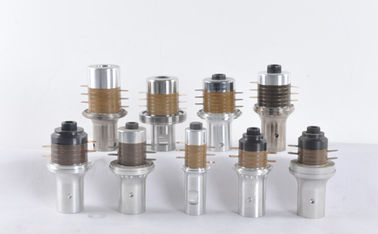

30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine

30Khz NTK Type High Temperature Ultrasonic Transducer For Spot Welding Machine
