Product Details:
|
| Frequency: | 20Khz | Output Power: | 1000w |
|---|---|---|---|
| Voltage: | 220v | Switch: | Handle Or Foot Switch |
| Power Adjusting: | Step Or Continuous | Working Time Control: | 24 Hours |
| Weight: | 30KG ( Determined By The Size Of The Horn ) | Generator: | Digital Generator |
| High Light: | Handle switch Ultrasonic Milling Machine,Cnc Ultrasonic Assisted Machining,Foot Switch Ultrasonic Milling Machine |
||

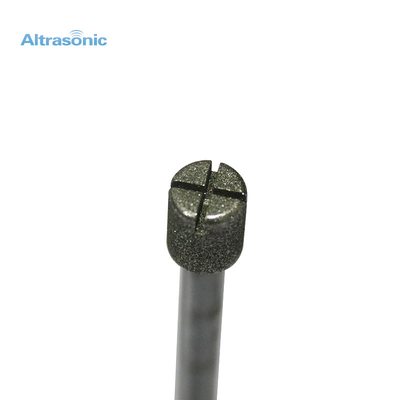

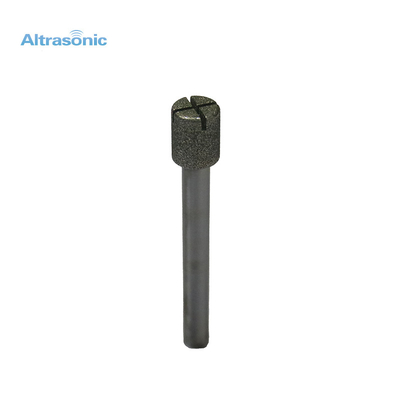

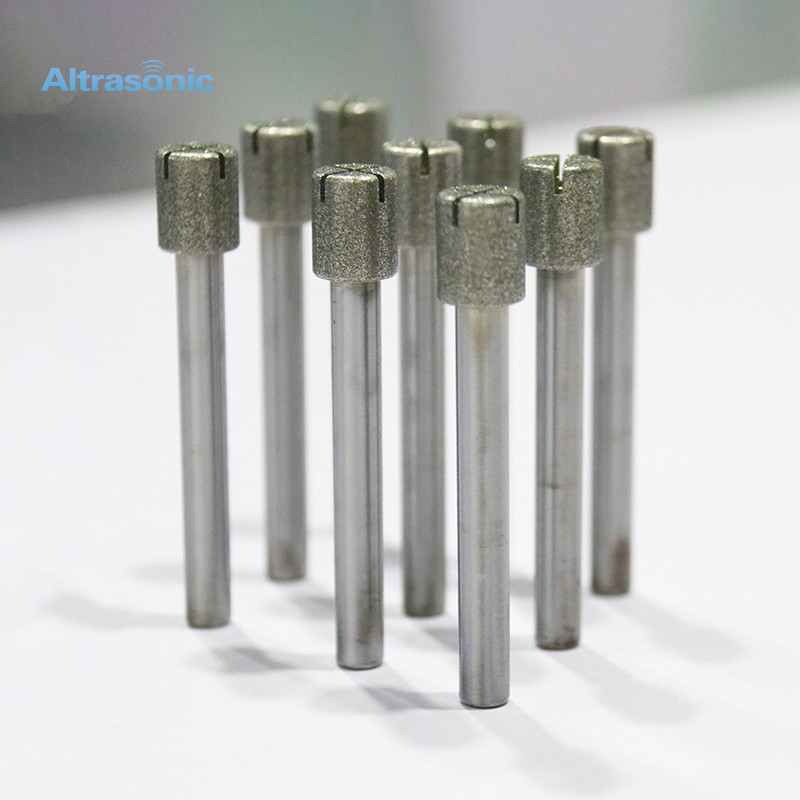

Cnc Ultrasonic Milling Machine Tool Head Handle Foot Switch For Metal
Introduction:
With the development of high speed spindle technology and ultrasonic power supply technology, the ultrasonic milling process gathering ultrasonic high frequency vibration and spindle rotating in high speed is regarded as the pioneer of high precision and high efficient process technology, applying in elaborate processing for various kinds of materials especially fragile rigid material. The milling process by using rotate milling cutter is suit for processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.
Ultrasonic milling is proved as one kind of effective technology to improve the work ability of Titanium alloy, Aluminum alloy and stainless steel. The ultrasonic milling process has more advantages than traditional milling. Comparing the ultrasonic process effect among steel, Titanium alloy, Aluminum alloy and stainless steel, the most prominent surface quality improvement are Titanium alloy and Aluminum alloy, the most prominent cutting capability improvement is stainless steel, and the most prominent quality improvement in side work piece is steel.
Specification:
| Frequency | 20 Khz |
| Output Power | 1000 W |
| Voltage | 220 V |
| Switch | Handle or foot switch |
| Power Adjusting | Step or continuous |
| Working Time Control | 24 Hours |
| Weignt | 30 KG ( Determined by the size of the horn ) |
| Generator | Digital Generator |
Advantages:
1. Fast processing speed
2. Convenient processing
3. Good surface quality
4. Wide adaptability to processing materials
5. The tool wear is small and the service life is long
Application:
Crystal, precious stones, agate, jade, glass products, ceramic utensils and germanium, silicon, ferrite and other high hardness materials drilling and carving.
