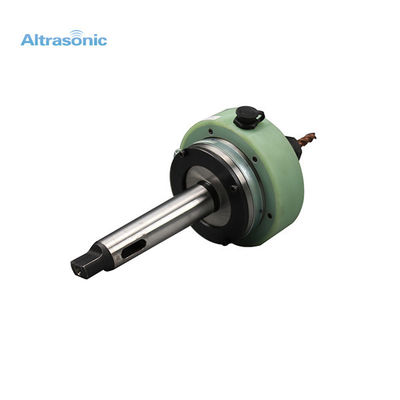

Hard Mold Material Ultrasonic Assisted Machining End Milling

Hard Mold Material Ultrasonic Assisted Machining End Milling
Hard Mold Material Ultrasonic Assisted Machining End Milling Hard Mold Material Ultrasonic Assisted Machining End Milling Hard Mold Material Ultrasonic Assisted Machining End Milling

Large Image :  Hard Mold Material Ultrasonic Assisted Machining End Milling

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 15-30 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 200 Set per month

Hard Mold Material Ultrasonic Assisted Machining End Milling

Description
High Light:

Ultrasonic Assisted End Milling

,

Ultrasonically assisted

Hard Mold Material Ultrasonic Assisted Machining End Milling



Ultrasonic Machining:



Ultrasonic assisted machining is a recently-developed technique, in which high-frequency (> 20 kHz) vibration is superimposed onto the movement of a standard drill bit in the axial direction, providing advantages including reduced drilling forces (reduction often in excess of 80%) and improved quality of drilled holes when compared to conventional drilling. Ultrasonic assisted drilling also achieves a reduction in entry and exit delamination size, but not in the expected proportion considering the observed reduction of drilling forces. A different mechanical process to that in conventional drilling may be driving the delamination in Ultrasonic assisted drilling, for example dynamic or thermal effects in addition to thrust and torque loads.



The aim of this project is to achieve a mechanical understanding of the process that drives delamination during Ultrasonic assisted drilling and to implement it in an analytical model and numerical tools with predictive ability. These can then be used to enhance Ultrasonic assisted drilling to minimise delamination and to predict the performance of hybrid joints with Ultrasonic assisted drilling-induced damage.

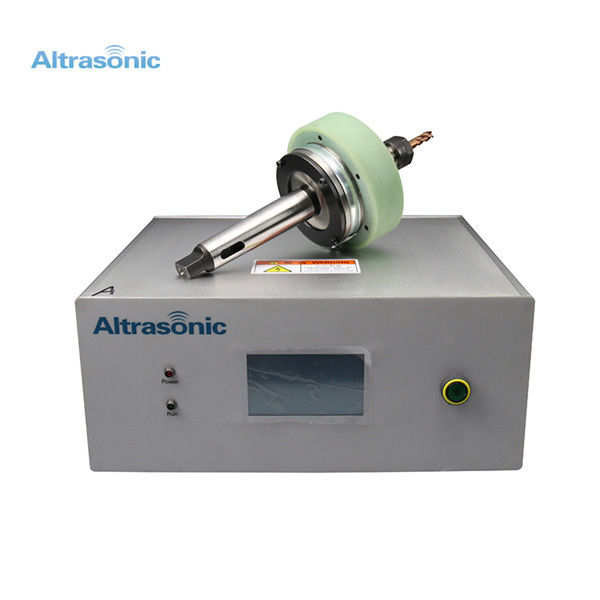

Hard Mold Material Ultrasonic Assisted Machining End Milling 0



Specification:



Frequency 20kHz
Output Power 500 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic drilling
Generator Digital Generator
Length of cable 5M



Applications:



  • Glass TRIANGULAR CAVITY
  • Sapphire
  • Alumina
  • Ferrite
  • PCD
  • Piezoceramics
  • Quartz
  • CVD Silicon Carbide
  • Ceramic Matrix Composites
  • Technical Ceramics

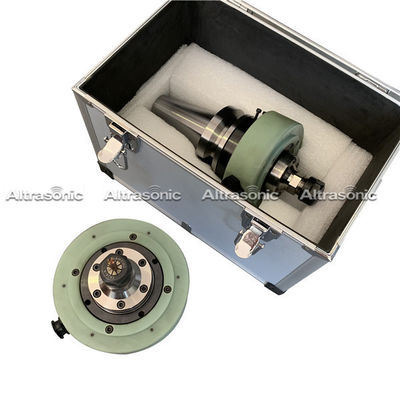

Transport and Packaging:



Hard Mold Material Ultrasonic Assisted Machining End Milling 1

Payment:



Hard Mold Material Ultrasonic Assisted Machining End Milling 2
