Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min

Milling Drilling Ultrasonic Assisted Machining Horn

The Principle of ultrasonic assisted mashining:

Ultrasonic machining offers a unique blend of capabilities, quality and material compatibility for the machining of engineered ceramics and advanced technical materials. The process is versatile, offering flexibility to meet a wide range of design requirements, and yields high-quality parts with little or no subsurface damage and no heat-affected zone.

Specification:

Description:

Ultrasonic vibration milling is a kind of pulse milling from a microscopic point of view. In a vibration cycle, the effective milling time of the tool is very short, and the tool is completely separated from the workpiece and chips more than 80% of the time.

Competitive Advantages:

• Capability to machine such fragile materials as silica since there is no contact between the tool and the part
• Capability to machine such hard materials as boron carbide, silicon carbide, silicon nitride
• Machining of such peculiar shapes as square or hexagonal holes even in very small dimensions - less than 1 mm
• Drilling of long holes - ratio diameter-to-length greater than 10 for small diameters
• This machining technique also makes it possible to carry out usual drilling operations of small diameter holes - about 0.4 mm.

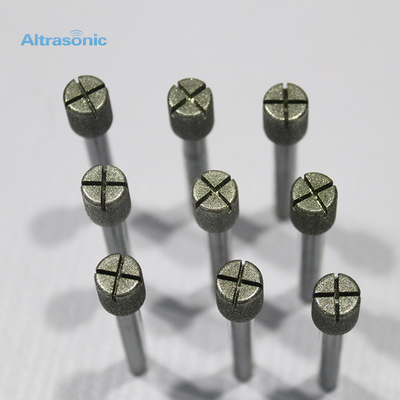

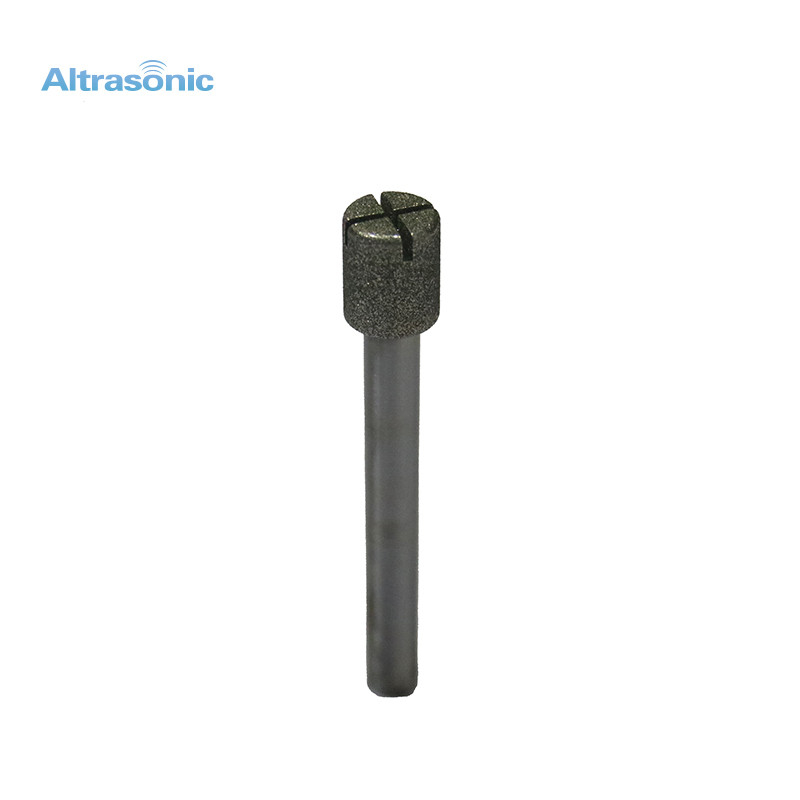

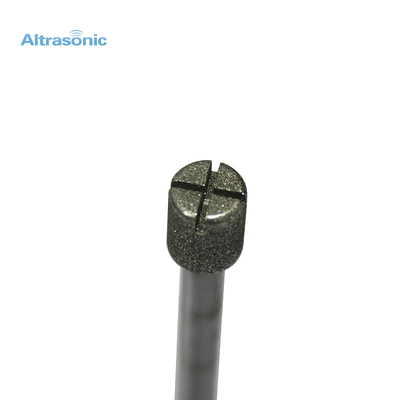

Product display:
