Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Frequency: | 60Khz |
|---|---|---|---|
| Power: | 500 Watt | Application: | Cutting Machine |
| Ceramic Disc: | 2 Pcs | Material Of Booster: | Titanium Material |
| Ceramic Diameter: | 15mm | Capacitance: | 0.7-0.8nF |
| High Light: | 2 Pcs Ceramic Ultrasonic Transducer,Medicine Cutting Ultrasonic Converter,Titanium Booster Ultrasonic Transducer |
||

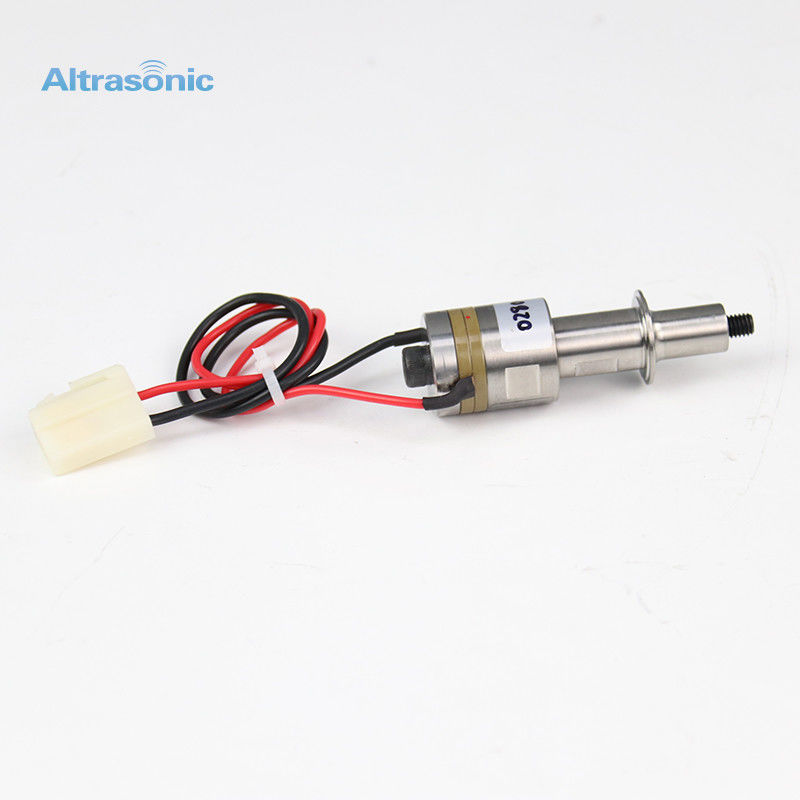

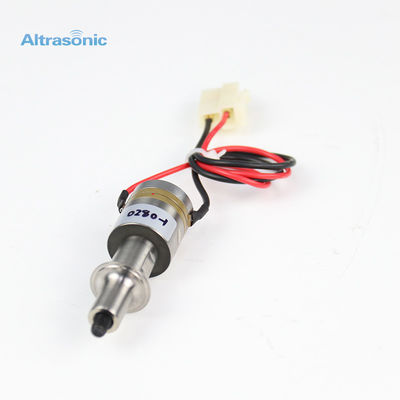

Titanium Customized 60Khz Ultrasonic Transducer for New Application in Medicine Cutting
Applied Range:
Advantages:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
Specifications:
| Model | HS-1560-2Z |
| Frequency | 60 khz |
| Output power | 500 watt |
| Joint bolt | M6 * 0.75 |
| Ceramic disc Diameter | 15 mm |
| Quantity of Ceramic discs | 2 pcs |
| Capacitance | 0.7 - 0.8 nf |
| Amplitude | 4 um |
| Application | welding machine |
