High Performance 20Khz Ultrasonics Sonochemistry System For Homogenizing

China High Performance 20Khz Ultrasonics Sonochemistry System For Homogenizing supplier
High Performance 20Khz Ultrasonics Sonochemistry System For Homogenizing supplier High Performance 20Khz Ultrasonics Sonochemistry System For Homogenizing supplier High Performance 20Khz Ultrasonics Sonochemistry System For Homogenizing supplier

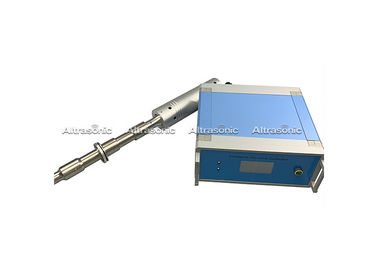

Large Image :  High Performance 20Khz Ultrasonics Sonochemistry System For Homogenizing

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSS61B-ZB

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 20 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1000 pieces/month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Sonochemistry System Model Number:: HSS61B-ZB
Frequency: 20Khz Power: 3000watt
Voltage: Voltage Amplitude: 90-100um
Power Supply: Digital Generator Power Range: Power Can Be Adjusted From 1% To 99%
Material Of Probe: Special Titanium Material Application: Dispersing,ectraction,mixing,homogenizing,reduce The Size Of Particles





High Performance 20Khz Ultrasonic Sonochemistry System For Homogenizing







Description:



Ultrasonic sonochemical processing equipment utilizes the cavitation of ultrasonic waves to achieve special effects such as extraction, separation, homogenization, emulsification, aging, degassing, synthesis and degradation. At present, it has been widely used in biodiesel production, microbial treatment, biodegradation treatment, biological cell pulverization, extraction of Chinese medicine ingredients, increase of liquid mobility, and particle refinement.



The industrial-grade sonochemical processing equipment produced by our company integrates cutting-edge control technology, Ansys simulation and sound field feedback optimization design technology, and has the characteristics of large amplitude output, high efficiency, large radiation area and high energy conversion efficiency. The ultrasonic sonochemical processing equipment composed of the ultrasonic driving power source has the functions of frequency range setting, continuous output amplitude adjustment, automatic frequency searching, adaptive frequency tracking, and fault alarm, and can be seamlessly integrated with the remote control system.



Specifications:



Model HSS11B-EB HSS55B-ZB HSS57B-ZB HSS59B-ZB HSS61B-ZB
Frequency 40±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz
Power 100 W 1000 W 1500 W 2000 W 3000 W
Voltage 220±10% V 220±10% V 220±10% V 220±10% V 220±10% V
Temperature 150 ℃ 150 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max Capacity > 100M L/Min > 5 L/Min > 15 L/Min > 20 L/Min > 30 L/Min
Material Of Tip Head Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy

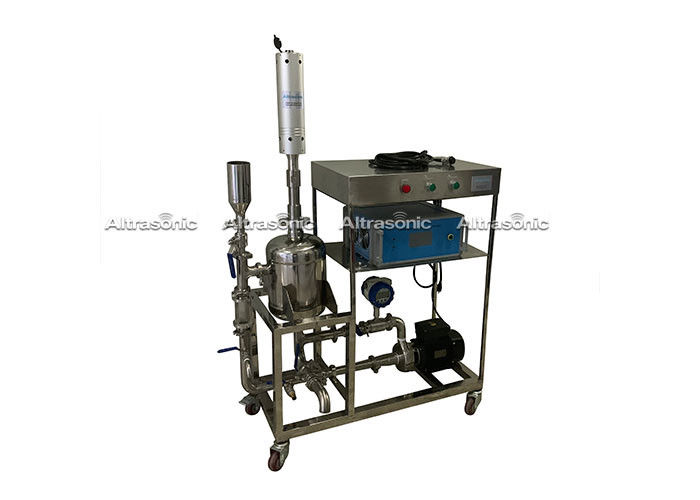

♦​ Schematic diagram of sonochemical processing equipment





High Performance 20Khz Ultrasonics Sonochemistry System For Homogenizing











No. Introduction No. Introduction
1

Vibrator air socket

9 Material outlet
2 Material feed inlet 10 Universal wheel
3 Control valve of feed inlet 11 Material pump
4 Visible window 12 Flow meter
5 Connector of vibrator 13 Cooling water inlet
6 Control valve of sample export 14 Cooling water outlet
7 Governor valve of feed flow rate 15 Ultrasonic vibrator
8 Control valve of outlet 16 Connector of vibrator





Main Characteristic:



1. In full accordance with American Society for Testing Materials ASTM G32-06 standard design and manufacturing

2. The sample amplitude can be adjusted by the user required

3. Test fluid temperature can be real-time monitoring and adjustment, ensure the accuracy of the experiment.

4. Sample test Interval can be adjusted by the user required

5. Sample amplitude, frequency parameter can be Real-time display,Monitoring and adjustment

6. Ultrasonic vibration stable, reliable, less fever heat.

7. All of System parameters through standard testing, result of a measurement have Highly comparable.









High Performance 20Khz Ultrasonics Sonochemistry System For Homogenizing









High Performance 20Khz Ultrasonics Sonochemistry System For Homogenizing
