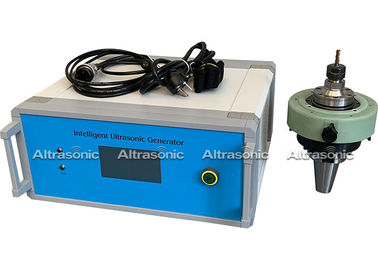

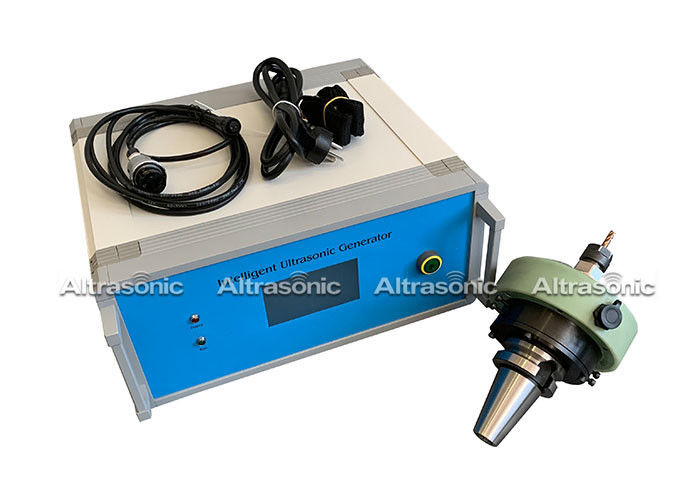

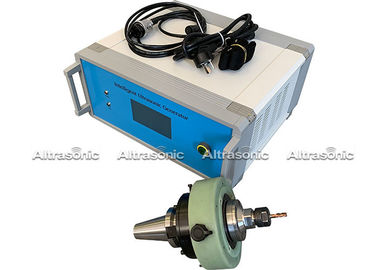

1000W High Performance Ultrasonic Drilling Machining For Deep Hole Processing

China 1000W High Performance Ultrasonic Drilling Machining For Deep Hole Processing supplier
1000W High Performance Ultrasonic Drilling Machining For Deep Hole Processing supplier 1000W High Performance Ultrasonic Drilling Machining For Deep Hole Processing supplier 1000W High Performance Ultrasonic Drilling Machining For Deep Hole Processing supplier

Large Image :  1000W High Performance Ultrasonic Drilling Machining For Deep Hole Processing

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Assisted Milling Machine Model Number:: HS-M2010
Frequency: 20Khz Power: 1000W
Voltage: 220V Generator: Digital Generator
Working Time Control: 24 Hours Weignt: 30 KG ( Determined By The Size Of The Horn )
Power Adjusting: Step Or Continuous Switch: Handle Or Foot Switch


20Khz 1000W Ultrasonic Drilling Machining For Deep Hole Processing







Description:



Ultrasonic machining refers to the method of applying ultrasonic vibration to a tool or workpiece in a certain direction.

The Ultrasonic drilling machine is a drilling device that uses vibrations in order to hammer its bit through materials, as opposed to traditional drilling methods. The drill uses a piezoelectric actuator as its source of power, and utilizes a variety of 'horns' to vibrate, or hammer, its bit through the material. It was originally designed to be able to drill through very rigid rock surfaces that would otherwise be damaged by a rotary drill, but has also shown potential usefulness to the field of medicine. It is the specific characteristics of the drill that make it ideal or practical for certain situations.



Specification:



Frequency 20 Khz
Output Power 1000 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weignt 30 KG ( Determined by the size of the horn )
Generator Digital Generator



Principle:



The ultrasonic drilling is driven by a Piezoelectric stack actuator that creates the vibrations. The actuator vibrates at an extremely high frequency, making it ultrasonic, and it is these waves of vibration that are transmitted by the horn of the actuator all the way to the bit itself. The vibrations are created at the actuator and are transferred by the horn to a free mass. The free mass vibrates between the drill stem and the horn of the actuator to transmit the vibrations down the drill stem. The drill stem houses the drill bit, and the vibrations push the bit into the material. The repetitive impact on the drill stem by the free mass, creates stress pulses that transmit to the tip of the bit and into the rock. Ultimately, the repetitive strike of the bit produces enough strain on the surface to fracture it.



Competitive Advantages:



  • Virtually any hard material can be machined
  • Little heat is produced
  • Since the motion of the tool is up-and-down vibration rather than rotation as in traditional machining, the holes cut are not limited to circular shapes but can be any shape. Custom "cookie cutter" tools can cut complicated shapes.
  • Good surface finish and higher structural integrity is obtained



Features:



♦ Products for standardized production, high reliability;

♦​ Compatible with existing milling machine or machining center interface, can be installed directly;

♦​ Ultrasonic system amplitude stability, continuous working time is long;

♦​​ The use of ultrasonic digital control generator, all-digital circuit control, anti-interference ability;

♦​​ Frequency, power can be real-time monitoring, power 30-99% adjustable, with automatic alarm protection, easy to operate;

♦​​ According to customer requirements, it can be customized.





Applications:



  • Various kinds of materials especially fragile rigid material.
  • Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.
  • Application area: machining industry, machine tool equipment manufacturing.
  • Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.



Why choose us?

1.Oversea Service Team: We now have agents in India,Austrillia,Hongkong,Singapore,Taiwan,Malaysia,Germany,and other country still being discussing.
2.Innovation: Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
3.Half the Price, Double the value: Every product reach you have been test in our company three times,and with 72 hours continous working,to confirm it is well before you get it.
4.Good Components: Ceramic mainly importes from German,and using the superior quality aluminum,titanium raw materials.
5.Individual Customize: We can customize products according to your requirements.Also supply OEM service.
6.Free Test: We accept samples from customers,do free test for customer. Also welcome customer visit our company for experiment.

Shipping and payment:

Shipping: DHL,TNT,FEDEX,UPS Express etc.
Payment: Pay by T/T,Paypal,West Union, customers can choose which payments ways that you accept.



1000W High Performance Ultrasonic Drilling Machining For Deep Hole Processing





1000W High Performance Ultrasonic Drilling Machining For Deep Hole Processing





1000W High Performance Ultrasonic Drilling Machining For Deep Hole Processing
