20kHz 3000Watts Ultrasonic Technology Circular System For Homogenizer Nanoemulsion

China 20kHz 3000Watts Ultrasonic Technology Circular System For Homogenizer Nanoemulsion supplier
20kHz 3000Watts Ultrasonic Technology Circular System For Homogenizer Nanoemulsion supplier 20kHz 3000Watts Ultrasonic Technology Circular System For Homogenizer Nanoemulsion supplier 20kHz 3000Watts Ultrasonic Technology Circular System For Homogenizer Nanoemulsion supplier

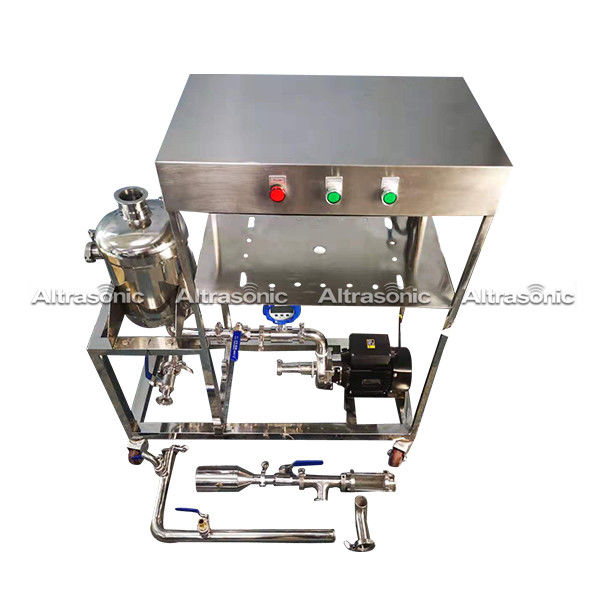

Large Image :  20kHz 3000Watts Ultrasonic Technology Circular System For Homogenizer Nanoemulsion

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSS61B-ZB

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Model: HSS61B-ZB Frequency: 20KHz
Output Power: 3000Watts Voltage: 220V/110V
Main Advantages: High Output Power And Cavitation Effect Amplitude: 80um
Power Supply: Digital Generator Power Range: Power Can Be Adjusted From 1% To 99%
Material Of Probe: Special Titanium Material Application: Dispersing, Mixing, Homogenizing, Reduce The Size Of Particles.



20kHz 3000Watts Ultrasonic Circular System For Homogenizer Nanoemulsion





Description:


Ultrasonic homogenization is the use of ultrasonic cavitation in liquids and other physical effects to achieve homogenization. Physical action refers to the formation of an effective agitation and flow disrupting medium in the liquid, the pulverizing of the particles in the liquid, mainly the collision between the liquid, the micro phase flow and the shock wave leading to changes in the surface morphology of the particles.
Cavitation refers to the generation of holes (small bubbles) in the weaker part of the liquid under the action of ultrasonic waves. The small bubbles pulsate with the ultrasonic waves, and the holes collapse in one sound cycle.



Specifications:



Model HSS61B-ZB
Frequency 20khz
Output power 3000watt
Voltage 220V/110V
Main advantages High output power and cavitation effect
Amplitude 80um
Power supply Digital Generator
Power range Power can be adjusted from 1% to 99%
Material of probe Special Titanium material
Application Dispersing, Mixing, Homogenizing, reduce the size of particles.





Application:



Ultrasonic mixing
Ultrasonic dispersing and deagglomeration
Ultrasonic Emulsifying
Ultrasonic Sonochemistry





FAQ:





Q:How do we confirm that the liquid in the tank has flooded the ultrasonic rod to the proper depth?

A: The material is added to the feeding port. The filling port does not need to be filled up, then the manual valve below the feeding port is closed, so that the material is completely full and can be recycled. Long-term operation of the reactor requires cold water.





Feature:

1. T caps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours.
2. Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours.
3. Use of the digitally controlled power, to ensure that all the time in the best condition.
4. Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.
5. The integrated piping made of stainless steel #316.
6. Overall liquid flow-controllable
7. Use network-based CAN-bus technology, all working parameters can have room remote control.

Advantages:

1. Core parts withTitanium materials.
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. Power adjustable from 1% to 99%
5. Frequency range from 19khz to 21khz
6. Lab and bench-up scale for testing





ultrasonic homogenizer 20khz 3000watt (7)



ultrasonic homogenizer 20khz 3000watt (6)
