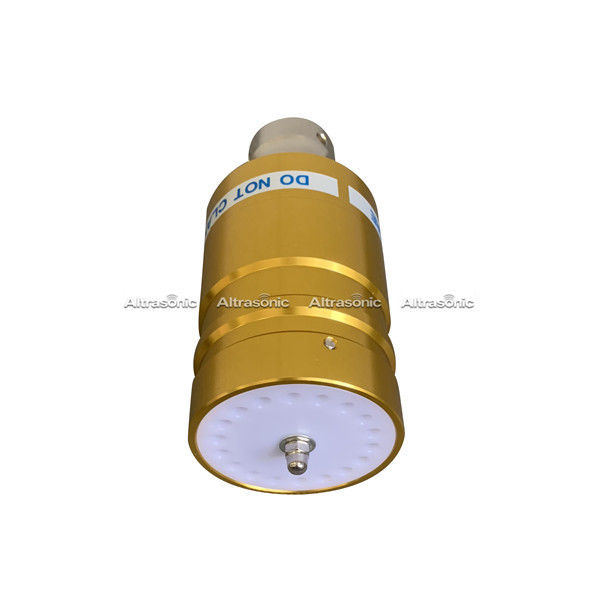

20 Khz 1500 Ultrasonic Welding Transducer For Branson 803 Converter Replacement

China 20 Khz 1500 Ultrasonic Welding Transducer For Branson 803 Converter Replacement supplier
20 Khz 1500 Ultrasonic Welding Transducer For Branson 803 Converter Replacement supplier 20 Khz 1500 Ultrasonic Welding Transducer For Branson 803 Converter Replacement supplier 20 Khz 1500 Ultrasonic Welding Transducer For Branson 803 Converter Replacement supplier

Large Image :  20 Khz 1500 Ultrasonic Welding Transducer For Branson 803 Converter Replacement

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSB803

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton, PE foam inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Frequency: 20Khz
Ceramic Diameter: 50MM Capacitance: 11.5 - 12.5 Nf
Power: 1500 Watt Application: Welding Machine
Amplitude: 20Um Ceramic Disc: 4-6 Pcs
Material Of Booster: Titanium Material Protective Housing: Aluminum And Stainless Steel Optional

20Khz 1500 Ultrasonic Welding Transducer For Branson 803 converter replacement





Description:


The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to

ensure performance that duplicates the OEM part.



Specifications:



Model HSB803
Frequency 20 khz
Output power 1500 watt
Joint bolt 1/2-20unf
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs or 6pcs
Capacitance 11.5 - 12.5 nf
Amplitude 20 um
Application

welding machine





Competitive Advantage of Altrasonic:



* good heat resistance

* large range of working temperature

* low resonance impedance and heat productivity

* good construction

* fastened by bolt

* easy for assembling



Application:



Automotive engine, compartment, functional, components, exterior/light, interior
Electronic sensors, switches, housings, electrical devices, cable and quick disconnect systems
Medical membranes, adaptors, connectors, fluid containers, filters, breathing masks, wound dressing, bandaging material
Consumer household, leisure, garden, toys, office, packaging
Automation industrial, automation, multihead components, flexibte robot cells



Product features:



All-new made in China

Meets or exceeds all Branson specifications

Directly replaces Branson803

Certified materials

Made in ISO-9002 registered facility


Warranty:



We offer the same warranty as the OEM, namely, one year of one-time replacement.

Simply ship the broken unit back to arrive within one year of original shipment, and it will be

replaced (one time).



20 Khz 1500 Ultrasonic Welding Transducer For Branson 803 Converter Replacement20 Khz 1500 Ultrasonic Welding Transducer For Branson 803 Converter Replacement20 Khz 1500 Ultrasonic Welding Transducer For Branson 803 Converter Replacement
