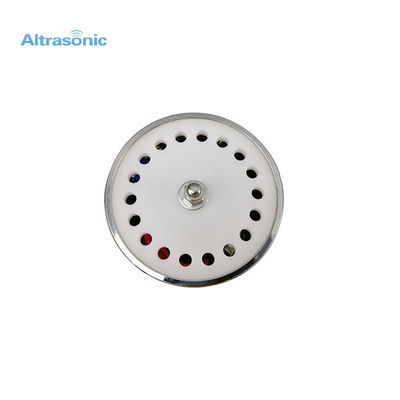

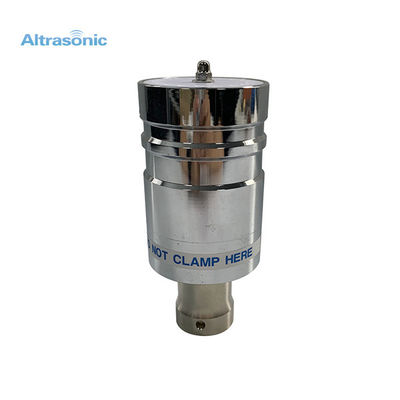

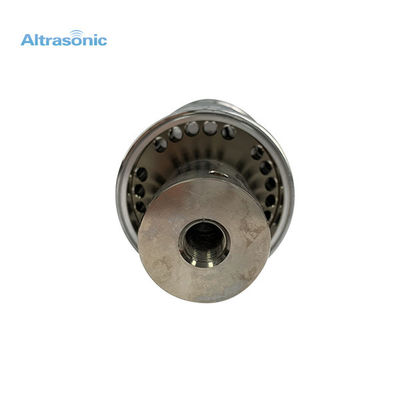

Gold Color Ultrasonic Converter Replacement Branson 803 Welding Transducer

Gold Color Ultrasonic Converter Replacement Branson 803 Welding Transducer
Gold Color Ultrasonic Converter Replacement Branson 803 Welding Transducer Gold Color Ultrasonic Converter Replacement Branson 803 Welding Transducer Gold Color Ultrasonic Converter Replacement Branson 803 Welding Transducer

Large Image :  Gold Color Ultrasonic Converter Replacement Branson 803 Welding Transducer

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-B803
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: packed in a wooden case.
Delivery Time: 7 workdays
Payment Terms: Western Union, T/T,paypal
Supply Ability: 5000 pieces/month

Gold Color Ultrasonic Converter Replacement Branson 803 Welding Transducer

Description
Frequency: 20 Khz Output Power: 1500 Watt
Joint Bolt: 1/2-20unf Ceramic Disc Diameter: 50 Mm
Quantity Of Ceramic Discs: 4 Pcs Or 6pcs Capacitance: 11.5 - 12.5 Nf
Amplitude: 20 Um Application: Welding Machine
High Light:

piezo ultrasonic transducer

,

ultrasonic transducers

Ultrasonic Converter Replacement Branson 803 Welding Transducer



Specifications:



Model HS-B803
Frequency 20 khz
Output power 1500 watt
Joint bolt 1/2-20unf
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs or 6pcs
Capacitance 11.5 - 12.5 nf
Amplitude 20 um
Application welding machine



Description:



The Ultrasonic Converter replacement for Branson Plastic Welding Machine Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to

ensure performance that duplicates the OEM part.



Product features:



All-new made in China

Meets or exceeds all Branson specifications

Directly replaces Branson803

Certified materials

Made in ISO-9002 registered facility



Competitive Advantage:



1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.









Gold Color Ultrasonic Converter Replacement Branson 803 Welding Transducer 0Gold Color Ultrasonic Converter Replacement Branson 803 Welding Transducer 1
