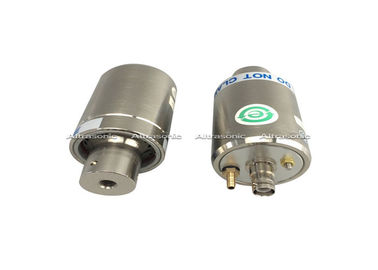

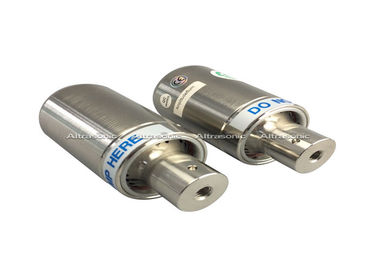

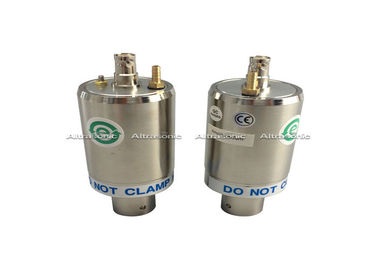

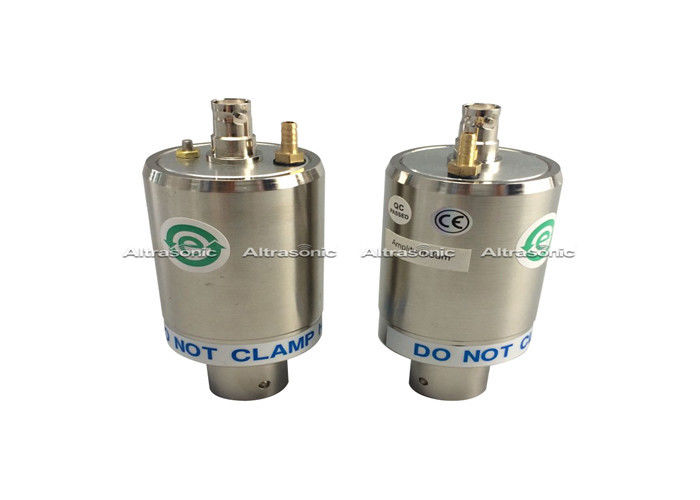

500 Watt Ultrasonic Transducer 40khz Replacement Branson 4TH For Spot Welding Machine

China 500 Watt Ultrasonic Transducer 40khz Replacement Branson 4TH For Spot Welding Machine supplier
500 Watt Ultrasonic Transducer 40khz Replacement Branson 4TH For Spot Welding Machine supplier 500 Watt Ultrasonic Transducer 40khz Replacement Branson 4TH For Spot Welding Machine supplier 500 Watt Ultrasonic Transducer 40khz Replacement Branson 4TH For Spot Welding Machine supplier

Large Image :  500 Watt Ultrasonic Transducer 40khz Replacement Branson 4TH For Spot Welding Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSB-4TH

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: packed in a wooden case.
Delivery Time: 7 workdays
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Frequency: 40 Khz Output Power: 500 Watt
Joint Bolt: M8 Ceramic Disc Diameter: 25 Mm
Capacitance: 4.5 -5.3 Nf Application: Welding

Replacement Ultrasonic Converter For Branson Model 4TH Welding Transducer





Specifications:



Model HSB4TH
Frequency 40 khz
Output power 500 watt
Joint bolt M8
Ceramic disc Diameter 25 mm
Quantity of Ceramic discs 4 pcs
Capacitance 4.5 -5.3 nf
Amplitude 6 um
Application welding machine





Description:



The Replacement Converter for Branson 4TH Direct replacement for the Branson 4TH that

delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance tha2t duplicates the OEM part.



Applied Range:



Ultrasonic transducers are widely used. They are divided into industry, agriculture, transportation, life, medical and military according to the applied industry. According to the functions realized, it is divided into ultrasonic processing, ultrasonic cleaning, ultrasonic detection, detection, monitoring, telemetry, remote control, etc.; according to the working environment, it is divided into liquid, gas, biological, etc.; according to the nature, it is divided into power ultrasonic, ultrasonic detection, ultrasonic imaging, etc. .



Competitive Advantage:



1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.



500 Watt Ultrasonic Transducer 40khz Replacement Branson 4TH For Spot Welding Machine

500 Watt Ultrasonic Transducer 40khz Replacement Branson 4TH For Spot Welding Machine
