20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz

China 20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz supplier
20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz supplier 20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz supplier 20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz supplier

Large Image :  20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz

Product Details:

Place of Origin: China
Brand Name: ALTRASONIC
Certification: CE
Model Number: HS-M2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 25 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Item No.: BT40 Spindle Frequency: 20kHz
Power: 500W Amplitude: 10um
Speed: 3000r/min(more Than 3000r/min Need Do Dynamic Balance) Matching Tool: Carbide End Mill Head Ф1-Ф13mm; Disk Cutter Ф50
Power Sadjusting: Step Or Continuous Generator: Digital Generator



Ultrasonic Assisted Machining With 20kHz 500W for Milling Ceramic Glass Quartz





Description:



Ultrasonic assisted machining system belong to the category of composite processing, make the tool, gently with a small force on the parts produced by transducer ultrasonic frequency of longitudinal vibration, and with the aid of the amplitude amplification, the amplitude drive tool face for ultrasonic vibration, force working liquid in the suspended particle collision with great speed and acceleration, polishing grinding surface processed.



The aim of this project is to achieve a mechanical understanding of the process that drives delamination during Ultrasonic assisted drilling and to implement it in an analytical model and numerical tools with predictive ability. These can then be used to enhance Ultrasonic assisted drilling to minimise delamination and to predict the performance of hybrid joints with Ultrasonic assisted drilling-induced damage.





The Principle of ultrasonic assisted mashining:



Ultrasonic machining offers a unique blend of capabilities, quality and material compatibility for the machining of engineered ceramics and advanced technical materials. The process is versatile, offering flexibility to meet a wide range of design requirements, and yields high-quality parts with little or no subsurface damage and no heat-affected zone. These benefits make it a valuable resource for the scientists, engineers and designers who are developing tomorrow’s advanced technologies.

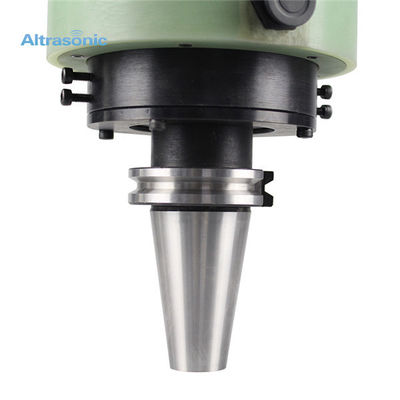

20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz





Advantage:



1. Compared with traditional machining, ultrasonic machining can reduce tool resistance, promote chip removal rate and improve tool strength, which can process more brittle and rigid materials, and greatly improve the roughness of hole wall and plane after processing.



2. The driving power of ultrasonic adopts solid-state all-crystal type, with full-automatic frequency tracking function, wide frequency modulation range, convenient adjustment, high reliability, with over current, over heat, detuning alarm, digital frequency display.

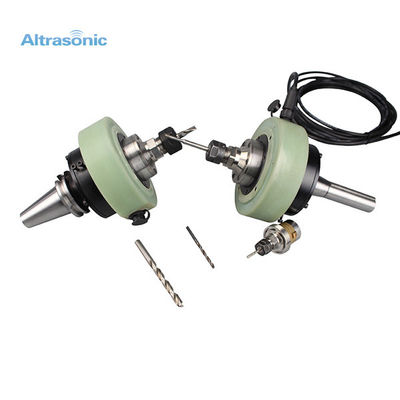

20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz





Application:



Crystal, precious stones, agate, jade, glass products, ceramic utensils and germanium, silicon, ferrite and other high hardness materials drilling and carving.

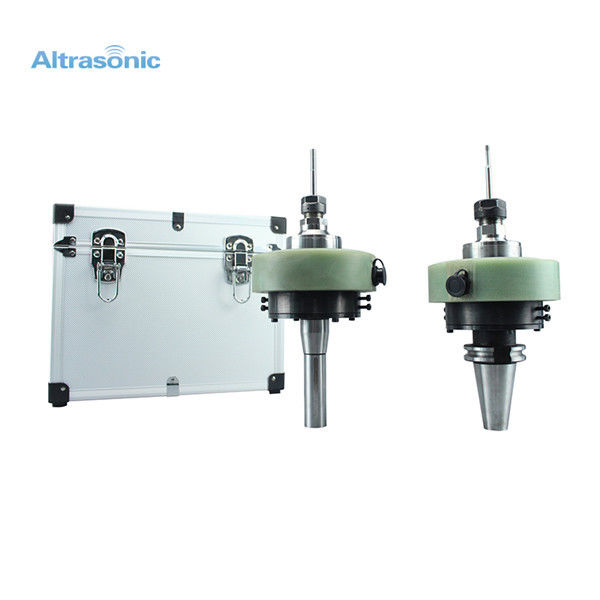

20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz

20kHz 500 W Ultrasonic Assisted Machining For Milling Ceramic Glass Quartz
