CE Rotary Ultrasonic Machining Non - Contact Power Transmission Technologies

CE Rotary Ultrasonic Machining Non - Contact Power Transmission Technologies
CE Rotary Ultrasonic Machining Non - Contact Power Transmission Technologies CE Rotary Ultrasonic Machining Non - Contact Power Transmission Technologies CE Rotary Ultrasonic Machining Non - Contact Power Transmission Technologies

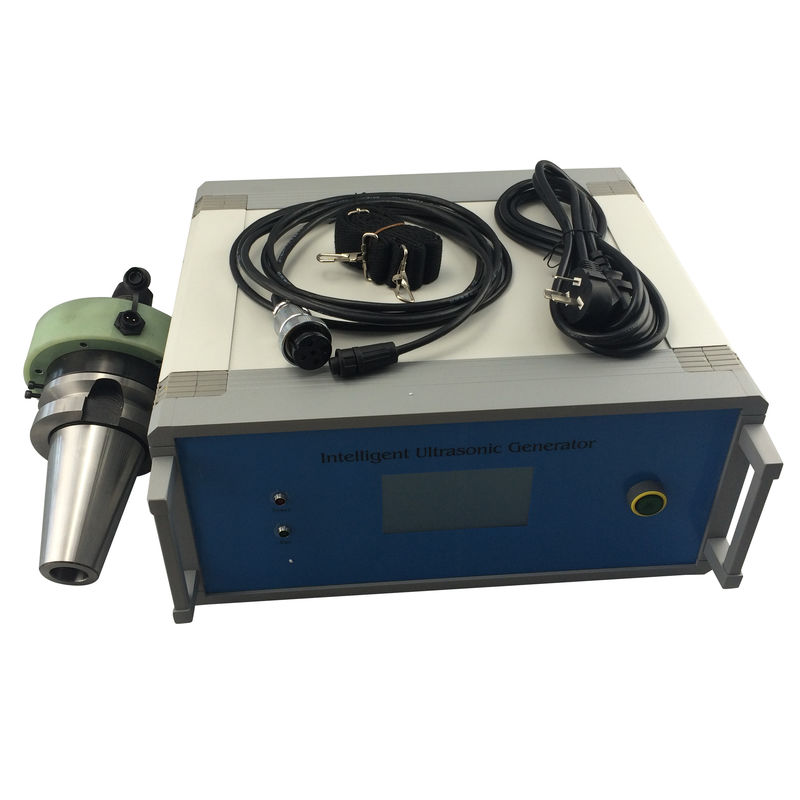

Large Image :  CE Rotary Ultrasonic Machining Non - Contact Power Transmission Technologies

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month

CE Rotary Ultrasonic Machining Non - Contact Power Transmission Technologies

Description
Power: 500W Frequency: 20Khz
Application: Ultrasonic Machining Components: Digital Generator, Transducer, Booster, Horn
Voltage: 220 V / 110V Generator: Digital Generator
High Light:

ultrasonic grinding machine

,

ultrasonic drilling machine



Non-Contact Power Transmission Technologies Ultrasonic Assisted Machining







Principle :



Rotary ultrasonic machining (RUM) is a mechanical type of nontraditional hybrid machining process that has been utilized potentially to machine a wide range of latest and difficult-to-machine materials, including ductile, hard and brittle, ceramics, composites, etc. In RUM, the basic material removal phenomenon of ultrasonic machining (USM) and conventional diamond grinding amalgamates together and results in higher material removal rate (MRR), improved hole accuracy with superior surface finish.







Specification:



Resonance point amplitude: 10um or more;

Speed: 3000 r / min or less

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;

Power: 500W



Frequency 20 Khz
Output Power 500 W
Voltage 220 V / 110V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic milling
Generator Digital Generator
Length of cable 5M







Advantages:



1. The process is non-thermal, non-chemical, and non-electrical, leaving the chemical and physical properties of the workpiece unchanged. This low-stress process translates into high reliability for your critical applications.

2. Multiple features can be machined at the wafer or substrate level simultaneously, and the process is scalable. Our process is often the highest quality and lowest cost solution.

3. Ultrasonic machined features have vertical side walls, enabling you to preserve valuable space for your designs that translate into higher productivity.

4. The process integrates well with semiconductor and MEMS processes. Machined features can be aligned to previously patterned, machined, or etched substrates.





Applications:



1. Hard and brittle materials can be machined like tungsten carbide, diamond and glass. These are difficult to machine in conventional m/c-ing process.
2. Wire drawing dies of tungsten carbide can be drilled by this process.

3. Circular as well as non-circular holes can be done with straight or curved axes.
4. It has been proved successful in machining geranium, silicon quartz and synthetic ruby etc.
