High Precise Ultrasonic Milling Machine With Different Series Tool Holder

China High Precise Ultrasonic Milling Machine With Different Series Tool Holder supplier
High Precise Ultrasonic Milling Machine With Different Series Tool Holder supplier High Precise Ultrasonic Milling Machine With Different Series Tool Holder supplier High Precise Ultrasonic Milling Machine With Different Series Tool Holder supplier

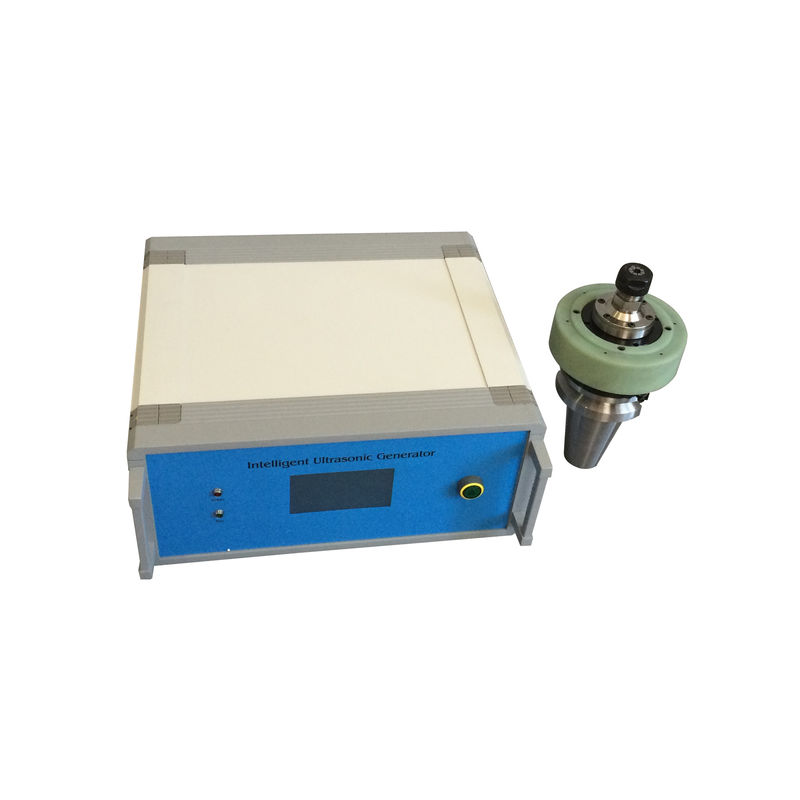

Large Image :  High Precise Ultrasonic Milling Machine With Different Series Tool Holder

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Power: 500W Frequency: 20Khz
Application: Ultrasonic Machining Components: Digital Generator, Transducer, Booster, Horn
Voltage: 220 V / 110V Generator: Digital Generator





High Precise Ultrasonic Assisted Milling Machining with Different Series Tool Holder







Introduction:



Ultrasonic milling has proven to be an effective technique for improving titanium, aluminum and stainless steel workability. Under the action of ultrasonic milling, it has more advantage than the traditional milling. In contrast to the effect of ultrasonic machining aluminum, steel, stainless steel, titanium four metallic materials.
Improved surface quality of the most prominent is the titanium and aluminum, can improve the cutting ability of the most prominent is the stainless steel, the quality of the workpiece side is the most significant improvement in steel. However, on the basis of traditional tools added to ultrasound, can greatly reduce the cutting of cutting resistance and improve cutting surface quality, but also increase the service life of the tool at least doubled.







Specification:



Resonance point amplitude: 10um or more;

Speed: 3000 r / min or less

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;

Power: 500W



Frequency 20 Khz
Output Power 500 W
Voltage 220 V / 110V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic milling
Generator Digital Generator
Length of cable 5M







Competitive Advabtage:



1.There are different types of connectors on different machine tools, such as BT/HSK/ISO/CAT, etc., which can be customized.

2.The cutting performance is greatly improved.

3.Under the action of ultrasonic vibration, the feed rate is increased and the cutting force is greatly reduced.







Application:



1.It is compatible with the existing machine tool machining center interface, easy to install and easy to operate.

2.The continuous operation time of the ultrasonic system is long and stable, and the reliability is high.

3.The ultrasonic numerical control electric box used in the whole digital circuit control has strong anti-interference ability.







FAQ:



Q:What are the advantages of ultrasonic assisted machining compared to conventional machining?

A:Improve efficiency, reduce wear and extend tool life.
