High Power 2000 Watt Ultrasonic Converter Replacement Branson Transducer 20Khz

China High Power 2000 Watt Ultrasonic Converter Replacement Branson Transducer 20Khz supplier
High Power 2000 Watt Ultrasonic Converter Replacement Branson Transducer 20Khz supplier High Power 2000 Watt Ultrasonic Converter Replacement Branson Transducer 20Khz supplier

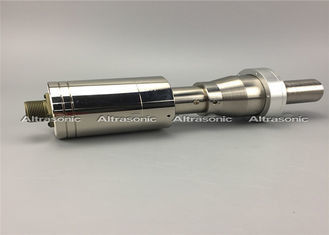

Large Image :  High Power 2000 Watt Ultrasonic Converter Replacement Branson Transducer 20Khz

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Model Number: HSBCR20

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: packed in a wooden case
Payment Terms: Western Union, T/T
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Frequency: 20kHz Output Power: 2000 Watt
Joint Bolt: 1/2-20 UNF Capacitance: 19-21 Nf
Amplitude: 20 Um Application: Welding



Replacement Ultrasonic Branson Transducer 20Khz 1:1.5 ratio Booster 2000watt for welding machine





Specifications:



Model HSBCR20
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 6 pcs
Capacitance 19-21 nf
Amplitude 20 um
Application welding machine





Competitive Advantage:



1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Replacement Item Specification:



Model

Frequency

(khz)

Ca(PF) Power(w) Machine
Branson 402 19.6-20.0 7800-8500 450-900 Branson8400
Branson 502 19.6-20.0 11500-12500 2000 Branson8800/5170
Branson CJ20 19.4-19.7 19000-21000 1100-4000 Branson2000 series
CB35A15A 36.5-7.5 3300-4000 800 Rinco-35A15A
CV231 38.3-39.0 3500-4500 900 40k Metal Welding
CV3510 36.2-37.0 3200-4000 800 Rinco-CV3510
Dukane 110-3122 19.6-20.0 12500-14000 2600 Dukane Heavy Duty



Why Pay More?



OEM converters have one of the highest markups of any industrial component you can buy. A high-quality replacement part such as this can result in significant savings, plus some of our customers tell us these converters run cooler and last longer than the OEM converters they replace.

Warranty:



We offer the same warranty as the OEM, namely, five years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).



Applied Range:


Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),

for use with all 20KHz 2000 and 2000X actuator and IW systems.



Competitive Advantage:



1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

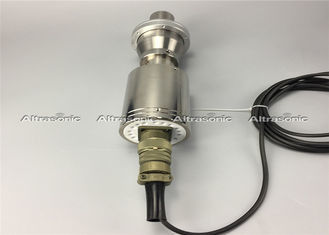

High Power 2000 Watt Ultrasonic Converter Replacement Branson Transducer 20Khz

High Power 2000 Watt Ultrasonic Converter Replacement Branson Transducer 20Khz

High Power 2000 Watt Ultrasonic Converter Replacement Branson Transducer 20Khz
