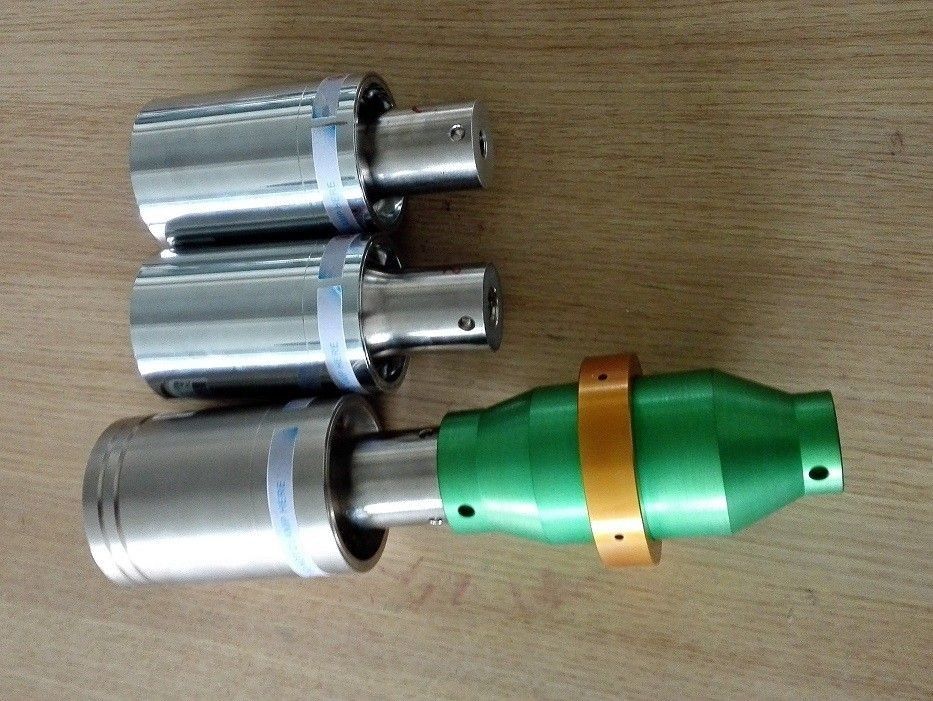

Replacement Ultrasonic Transducer Branson CJ20 With Gold Booster 1/0.6 Ratio

China Replacement Ultrasonic Transducer Branson CJ20 With Gold Booster 1/0.6 Ratio supplier
Replacement Ultrasonic Transducer Branson CJ20 With Gold Booster 1/0.6 Ratio supplier Replacement Ultrasonic Transducer Branson CJ20 With Gold Booster 1/0.6 Ratio supplier

Large Image :  Replacement Ultrasonic Transducer Branson CJ20 With Gold Booster 1/0.6 Ratio

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Model Number: HSBCJ20

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: packed in a wooden case
Payment Terms: Western Union, T/T
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Frequency: 20kHz Output Power: 2000 Watt
Joint Bolt: 1/2-20 UNF Capacitance: 19-21 Nf
Amplitude: 20 Um Name: Ultrasonic Transducer



Replacement Ultrasonic Transducer Branson CJ20 with Gold Booster 1:0.6 ratio





Specifications:



Model HSBCJ20
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 6 pcs
Capacitance 19-21 nf
Amplitude 20 um
Application welding machine



Description:



The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson CJ-20 (101-135-059) , that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.



Replacement Item Specification:



Model

Frequency

(khz)

Ca(PF) Power(w) Machine
Branson 402 19.6-20.0 7800-8500 450-900 Branson8400
Branson 502 19.6-20.0 11500-12500 2000 Branson8800/5170
Branson CJ20 19.4-19.7 19000-21000 1100-4000 Branson2000 series
CB35A15A 36.5-7.5 3300-4000 800 Rinco-35A15A
CV231 38.3-39.0 3500-4500 900 40k Metal Welding
CV3510 36.2-37.0 3200-4000 800 Rinco-CV3510
Dukane 110-3122 19.6-20.0 12500-14000 2600 Dukane Heavy Duty



Competitive Advantage:



1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Our service



Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.

Altrasonic’s service team is 24/7 available for support. Our well trained and experienced service engineers advise and support on-line or if necessary on location. Whether a custom-made production line or a standard machine: we always ensure that production can be resumed as soon as possible.
