Payment & Shipping Terms:
|Quantity Of Ceramic Discs:||2pcs||Ceramic Disc Diameter:||25mm|
|Material:||Titanium Alloy||Warranty:||1 Year|

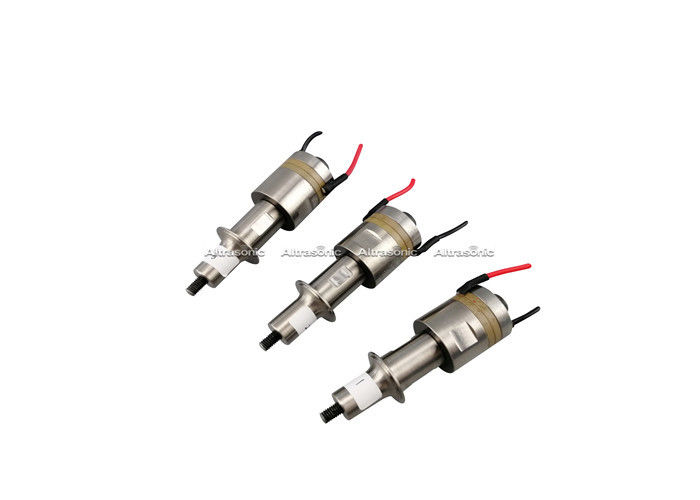

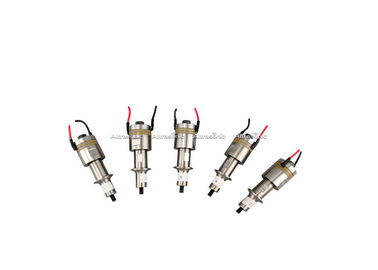

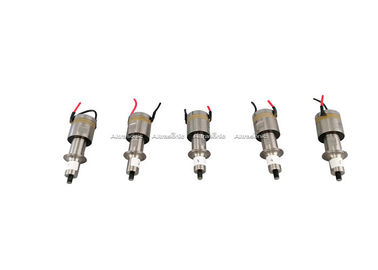

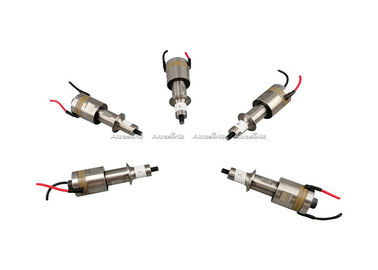

60kHz Ultrasonic Welding Transducer High Power 500watt converter
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks.The 60K 500W Ultrasonic Welding Transducer have feature as follow:good heat resisitance, large range of working temperature, fastened by bolt.
Introduction of ultrasonic transducers in ultrasonic welding applications
Ultrasonic welding has two major categories: ultrasonic metal welding and ultrasonic plastic welding. Among them, ultrasonic plastic welding technology has been widely used. It uses ultrasonic vibration generated by the transducer to transmit ultrasonic vibration energy to the weld zone through the upper weldment. Since the welding zone, that is, the sound resistance at the junction of the two weldments is large, local high temperature is generated to melt the plastic, and the welding work is completed under the contact pressure. Ultrasonic plastic welding facilitates the welding of parts that cannot be welded by other welding methods. In addition, it also saves expensive mold costs for plastic products, shortens processing time, improves production efficiency, and is economical, fast, and reliable.
1.Piezoelectric element offer a high speed of vibration.
2.Bolt-on mounting gives the fast, easy installation and high reliability.
3.Low resonance impedance and heat productivity.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
