High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling

China High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling supplier
High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling supplier High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling supplier High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling supplier

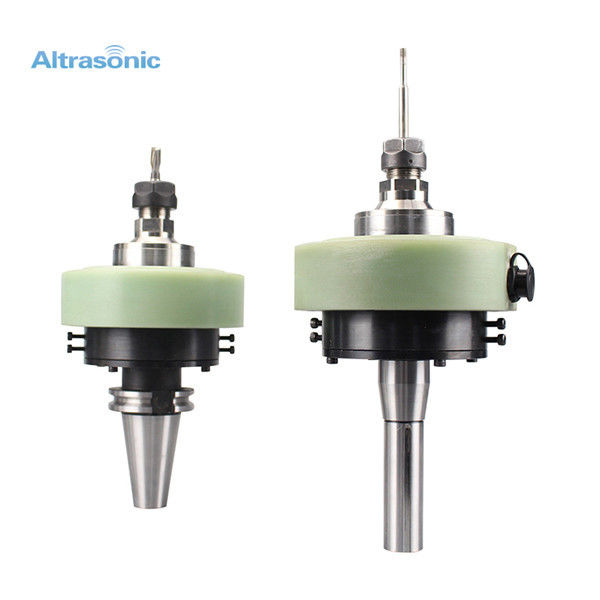

Large Image :  High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Power: 500W / 1000W Frequency: 20Khz / 40Khz
Generator: Digital Application: Ultrasonic Machining
Components: Digital Generator, Transducer, Booster, Horn





High Speed 20K Ultrasonic Assisted Machining of BT30 tool holder for Milling







Introduction:



Ultrasonic milling is a non-traditional, loose abrasive machining process. In this the mirror image of a shaped tool can be created in hard, brittle materials. Material removal is achieved by the direct and indirect hammering of abrasive particles against a workpiece.

The shape of the tool holder is cylindrical or conical, or a modified cone which helps in magnifying the tool tip vibrations. In order to reduce the fatigue failures, it should be free from nicks, scratches and tool marks and polished smooth.

Low carbon steels and stainless steels give good performance. v Tools are usually 25 mm long ; its size is equal to the hole size minus twice the size of abrasives. Mass of tool should be minimum possible so that it does not absorb the ultrasonic energy.







Parameters:



Frequency 20 Khz/40Khz
Output Power 500 W / 1000W
Voltage 220 V / 11OV
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic Milling
Generator Digital Generator
Length of cable 5M







Application:



Hard materials

Processing plane, groove, all kinds of form surface

Processing spline, gear and thread

Processing special surface of mould

Echanical equipment transformation industry







Advantage:



1. Excellent harden and brittle materials machining solutions;

2. Outstanding surface quality;

3. Lower cutting resistance and thermal deformation;

4. Less material damage and rim fragments;

5. Higher efficient machining mode;

7. Smaller micro-drilling hole.





High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling

High Speed 20K Ultrasonic Assisted Machining Of BT30 Tool Holder For Milling
