2000W Hi Power Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine

2000W Hi Power Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine
2000W Hi Power Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine 2000W Hi Power Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine 2000W Hi Power Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine 2000W Hi Power Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine

Large Image :  2000W Hi Power Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS5020-6D
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Delivery Time: 5 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

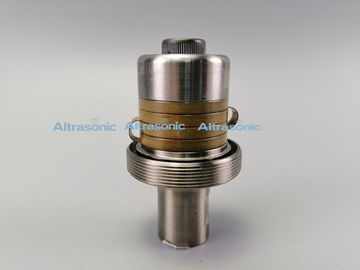

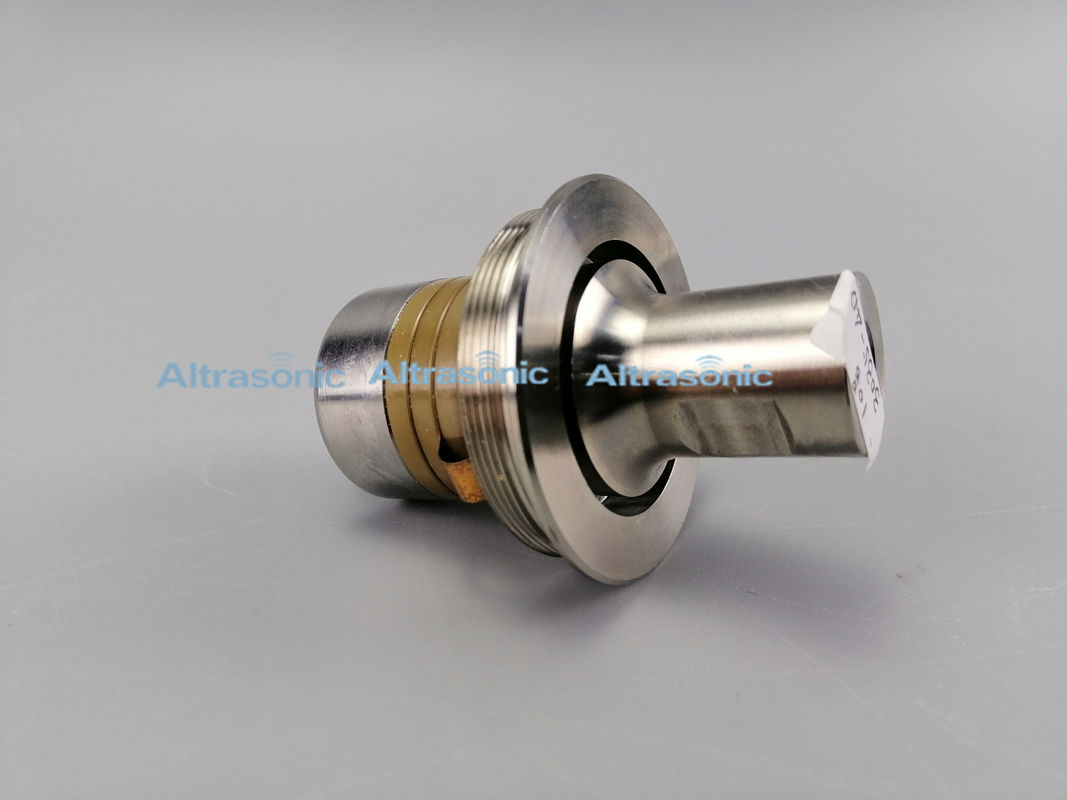

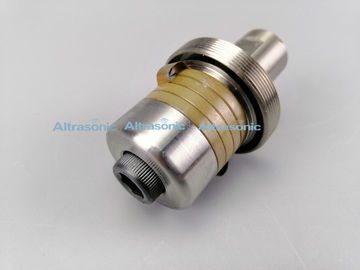

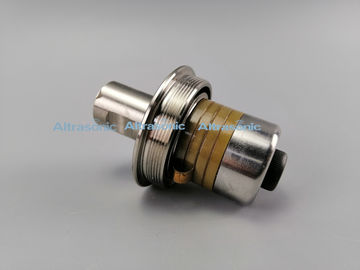

2000W Hi Power Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine

Description
Frequency: 20kHz Output Power: 2000watt
Ceramic Disc Diameter: 50 Mm Capacitance: 19-21nf, 22.5-25nf
Amplitude: 12um Application: Welding
High Light:

piezo ultrasonic transducer

,

ultrasonic transducers



20Khz 2000W high power Ultrasonic Converter Piezoelectric Transducter For Welding Cutting Machine





Specifications:



Product Name: Ultrasonic Welding Transducer Frequency: 20 Khz
Ceramic Diameter: 50 Mm Capacitance: 19-21nf, 22.5-25nf
Power: 2000 Watt Application: Welding Machine
Amplitude: 12 Um Ceramic Disc: 6 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional
Connect Screw: 1/2-20UNF



Principle



1, The main ultrasonic unit composed of a converter (piezoelectric transducer),booster and asonotrode(horn). All three elements of the stack are specifically tuned to resonate at the same exact ultrasonic frequency( typically 15,20,30,35 or 40KHz)

• Converter/transducer: converters the electrical signal into a mechanical vibration

• Booster: modifies the amplitude of the vibration. It is also used in standard systems to clamp the stack in the press.

• Sonotrode/horn: applies the mechanical vibration to the parts to be welded.

2, ultrasonic generator(power supply) delivering a high power AC signal with frequency matching the resonance frequency of the stack.



Features:



1.Adopt the imported chips

2.High output power

3.High quality

4.Already export to USA, Europe, Asia ,Middle East etc country

5.15KHz-70KHz,100w-6000w supplied



Application :



The applications of ultrasound are extensive and are found in many industries including electrical and computer,automotive and aerospace, medical and packaging. Whether two items can be ultrasonically welded is determined by their thickness. If they are too thick ,this process will not join them. This is the main obstacle in the welding of metals. However, wires,microcircuit connections,sheet metal,foils,ribbons and meshes are often joined using ultrasonic welding. Ultrasonic welding is a very popular technique for bonding thermoplastics. It is fast and easily automated with weld times often below one second and there is no ventilation system required to remove heat or exhaust.



Competitive Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation





Transducer Type



The columnar type NTK TYPE (stabilized power and high reliablity widely application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4Z M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 10
6015-4Z M20 X 1.5 or M16 X 1 60 4 15 15 8000-10000 10000-12000 12500-13500 2200 10
6015-6Z M20 X 1.5 60 6 15 15 14000-16000 / 19500-21000 2600 10
5015-4Z M18 X 1.5 50 4 15 15 12000-13000 13000-14300 15000-17000 1500 8
4015-4Z M16 X 1 40 4 15 15 10000-11000 10500-11500   700 8
5520-4Z M18 X 1 55 4 20 15 10000-11000 10500-11500 14300-20000 2000 8
5020-6Z M18 X 1.5 50 6 20 15 18500-20000 / 22500-25000 2000 8
5020-4Z M18 X 1.5 50 4 20 15 11000-13000 13000-15000 15000-17000 1500 8
5020-2Z M18 X 1.5 50 2 20 20 6000-6500 6500-7000 8000-9000 800 6
4020-4Z 1/2-20UNF 40 4 20 15 9000-10000 9500-11000 / 900 6
4020-2Z 1/2-20UNF 40 2 20 25 / 4800-5500 / 500 5
5025-2Z M12 X 1 50 2 25 25 5000-5600 / 7000-8000 500 4
3828-2Z 1/2-20UNF 38 2 28 30 3800-4300 / / 500 3
3828-4Z 1/2-20UNF 38 4 28 30 7600-8500 / 10500-12000 800 4
3028-2Z 3/8-24UNF 30 2 28 30 2700-3100 3400-3800 / 400 3
2528-4Z M8 X 1 25 4 28 30 3900-4300 / / 400 4
2528-2Z M8 X 1 or 3/8-24UNF 25 2 28 35 1950-2200 2200-2500 / 300 3
3030-4Z M10 30 4 30 30 / 6200-6900 / 700 4
3035-2Z 3/8-24UNF 30 2 35 40 2700-3100 / / 500 2
3035-4Z M10 X 1 30 4 35 30 5000-6200 / / 800 3
2535-2Z M8 X 1 25 2 35 40 1900-2200 / / 400 2
2540-2Z 3/8-24UNF 25 2 40 40 / 2000-2300 / 500 2
3040-4Z M10 30 4 40 30 5500-6200 / / 1000 2
3050-4Z M8 30 4 50 30 5500-6200 / / 600 2
1560-2Z M6 X 0.75 15 2 60 60 / / 700-800 100 1
1070-2Z M4 10 2 70 200 / / 350-400 100 1
The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4D M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 11
6015-4D M18 X 1.5 60 4 15 15 9000-10000 10000-11000 / 2200 11
6015-6D 1/2-20UNF 60 6 15 15 19000-20500 / 23000-25000 2600 11
5015-6D 1/2-20UNF 50 6 15 15 17000-19000 / 23000-25000 2000 11
5020- 4DS 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 / 1300 8
5020-4D 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 14500-16000 1500 8
5020-6D 1/2-20UNF 50 6 20 15 19000-21000 / 22500-25000 2000 10
4020-6D 1/2-20UNF 40 6 20 15 13500-15000 / / 1500 10
4020-4D 1/2-20UNF 40 4 20 15 8500-9300/ 9500-10500 10000-11000 10500-11500 900 8
3020-6D 3/8-24UNF 30 6 20 15 8000-9000 / / 600 9
3030-4D M8 or M8 X 1 30 4 30 20 / 6200-6900 / 800 5
3535-2D M8 X 1 35 2 35 25 / / 4500-5000 600 9
3535-4D M8 X 1 35 4 35 20 6600-7400 / 9000-10000 1000 4
3035-4D 1/2-20UNF 30 4 35 20 5500-6200 / 9200-10200 800 4
2535-4D M8 25 4 35 25 3900-4300 / / 500 4
3040-2D M8 30 2 40 30 / 3400-3800 / 500 2
2540-4D M8 25 4 40 30 4500-5300 / / 500 3
2040-2D M8 20 2 40 40 1100-1300 1150-1350 / 300 2


PS:we can also customize depend on your requirements.
