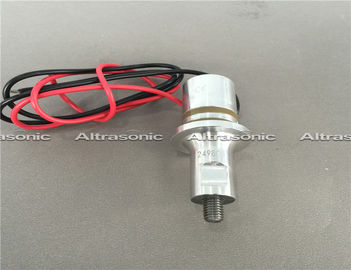

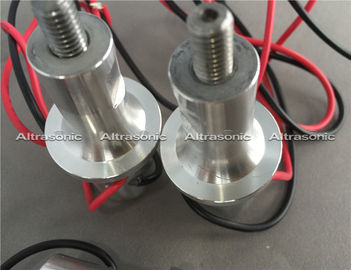

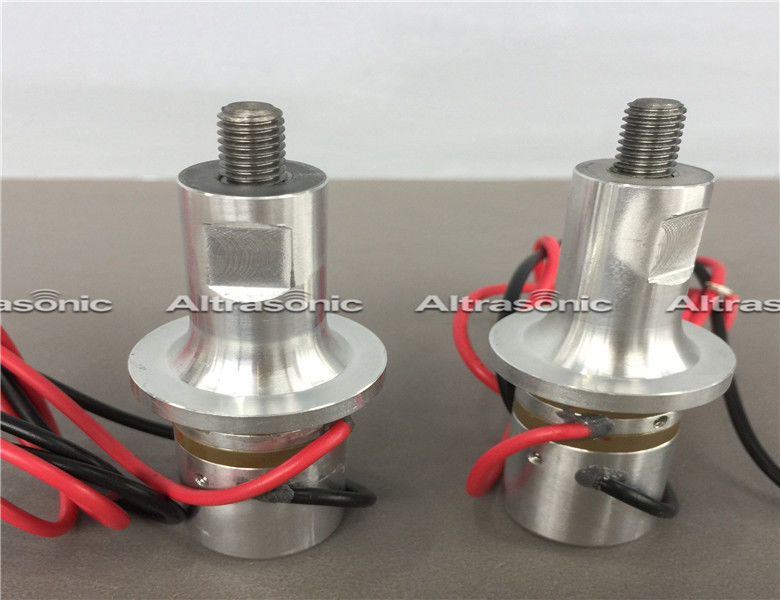

35K Replacement Rinco Ultrasonic Converter Aluminum Between Two Pieces Ceramics

China 35K Replacement Rinco Ultrasonic Converter Aluminum Between Two Pieces Ceramics supplier
35K Replacement Rinco Ultrasonic Converter Aluminum Between Two Pieces Ceramics supplier 35K Replacement Rinco Ultrasonic Converter Aluminum Between Two Pieces Ceramics supplier 35K Replacement Rinco Ultrasonic Converter Aluminum Between Two Pieces Ceramics supplier

Large Image :  35K Replacement Rinco Ultrasonic Converter Aluminum Between Two Pieces Ceramics

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Model Number: HSR-35

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: packed in a wooden case
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Frequency: 35kHz Output Power: 900watt
Joint Bolt: M18*1.25 Ceramic Disc Diameter: 25mm
Amplitude: 12um Application: Welding



35Khz Replacement Rinco Ultrasonic Transducer Aluminum Between Two Pieces Ceramics





Specifications:



Model HSR-35
Frequency 35 khz
Output power 900 watt
Joint bolt M18*1.25
Ceramic disc Diameter 25 mm
Quantity of Ceramic discs 2 pcs
Bolt Fixing with transducer body
Amplitude 12um
Application welding machine



Description:



The Replacement Converter for Rinco 35khz machine Direct replacement for the Rinco 35khz machine thatdelivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure

performance that duplicates the OEM part.


Replacement Item:



Item No Connect Screw (Size)

Ceramic diameter

(mm)

Qty of ceramic

(PC)

Frequency(khz) Resistance(Ω) Color of ceramic Capacitance

Input Power

(W)

Branson CJ20 1/2-20UNF 50 6 19.90 10 Yellow 20000 3300
Branson 502 1/2-20UNF 50 6 19.90 10 Yellow 20000 3300
Branson 402 M8*1.25 25 4 39.60 10 Yellow 4200 800
Branson 4TH M8*1.25 25 4 39.90 10 Yellow 4200 800
Branson 902 1/2-20UNF 40 4 19.85 10 Yellow 8000 1100
Branson 922J 1/2-20UNF 50 6 19.90 10 Yellow 20000 2200
Dukane 40K M8*1.25 35 2 39.80 5 Gray 3000 800
Dukane 20K 1/2-20UNF 50 2 19.50 10 Yellow 11000 2000
Dukane 110-3122 1/2-20UNF 50 4 19.50 10 Yellow 11000 2000
Dukane 110-3168 1/2-20UNF 45 2 19.50 10 Yellow 4000 800
Rinco 35K M8*1.25 25 2 34.80 50 Yellow 2000 900
Rinco 20K M16*2 50 2 19.90 50 Yellow 5000 3000
Telsonic 35K M8*1.25 25 4 35.00 5 Yellow 4000 1200
Telsonic 20K 1/2-20UNF 50 4 20.00 3 Yellow 10000 2500




Warranty:



We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced

(one time).





Applied Range:


Replacement ultrasonic converter for 35KHz Rinco machine, for use with 35KHz welding machine.





Competitive Advantage:



  • Titanium materials and Aluminum materials optional.
  • Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
  • One by one testing to ensure that each transducer performance are excellent.
  • In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,



  • OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
  • Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
  • For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
