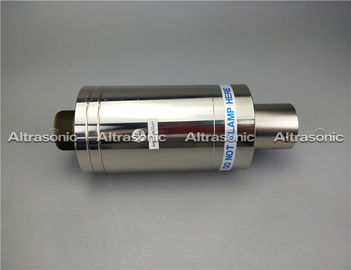

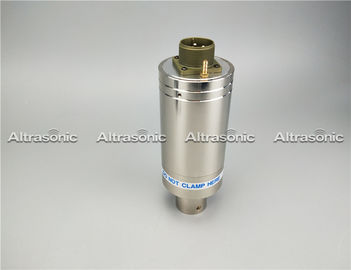

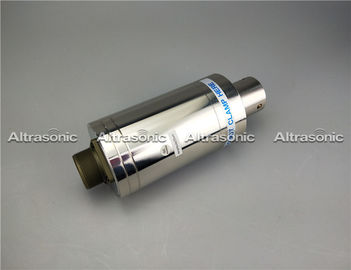

Replacement Brason CR20 Ultrasonic Welding Transducer With Protective Housing

China Replacement Brason CR20 Ultrasonic Welding Transducer With Protective Housing supplier
Replacement Brason CR20 Ultrasonic Welding Transducer With Protective Housing supplier Replacement Brason CR20 Ultrasonic Welding Transducer With Protective Housing supplier Replacement Brason CR20 Ultrasonic Welding Transducer With Protective Housing supplier Replacement Brason CR20 Ultrasonic Welding Transducer With Protective Housing supplier

Large Image :  Replacement Brason CR20 Ultrasonic Welding Transducer With Protective Housing

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSB-CR20

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Packaging Details: packed in a wooden case
Delivery Time: 7 workdays
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Frequency: 20 Khz Output Power: 2000 Watt
Joint Bolt: 1/2-20 UNF Ceramic Disc Diameter: 50 Mm
Quantity Of Ceramic Discs: 6 Pcs Capacitance: 19-21 Nf
Amplitude: 20 Um Application: Welding



20khz Replacement Brason CR20 Ultrasonic Welding Transducer With Protective Housing





Specification:



Model HSBCR20
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 6 pcs
Capacitance 19-21 nf
Amplitude 20 um
Application welding machine



Description:



The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson CR20 (101-135-059) , that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.



Replacement Item Specification:



Model

Frequency

(khz)

Ca(PF) Power(w) Machine
Branson 402 19.6-20.0 7800-8500 450-900 Branson8400
Branson 502 19.6-20.0 11500-12500 2000 Branson8800/5170
Branson CJ20 19.4-19.7 19000-21000 1100-4000 Branson2000 series
CB35A15A 36.5-7.5 3300-4000 800 Rinco-35A15A
CV231 38.3-39.0 3500-4500 900 40k Metal Welding
CV3510 36.2-37.0 3200-4000 800 Rinco-CV3510
Dukane 110-3122 19.6-20.0 12500-14000 2600 Dukane Heavy Duty





Why Pay More?



OEM converters have one of the highest markups of any industrial component you can buy. A high-quality replacement part such as this can result in significant savings, plus some of our customers tell us these converters run cooler and last longer than the OEM converters they replace.



Applied Range:



Ultrasonic transducers are widely used. They are divided into industry, agriculture, transportation, life, medical and military according to the applied industry. According to the functions realized, it is divided into ultrasonic processing, ultrasonic cleaning, ultrasonic detection, detection, monitoring, telemetry, remote control, etc.; according to the working environment, it is divided into liquid, gas, biological, etc.; according to the nature, it is divided into power ultrasonic, ultrasonic detection, ultrasonic imaging, etc.



Competitive Advantage:



1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.





Replacement Brason CR20 Ultrasonic Welding Transducer With Protective Housing

Replacement Brason CR20 Ultrasonic Welding Transducer With Protective Housing
