Product Details:
|
| Frequency: | 20 Khz | Output Power: | 2000 Watt |
|---|---|---|---|
| Joint Bolt: | 1/2-20 UNF | Ceramic Disc Diameter: | 50 Mm |
| Quantity Of Ceramic Discs: | 6 Pcs | Capacitance: | 19-21 Nf |
| Amplitude: | 20 Um | Application: | Welding |
| High Light: | piezo ultrasonic transducer,ultrasonic transducers |
||

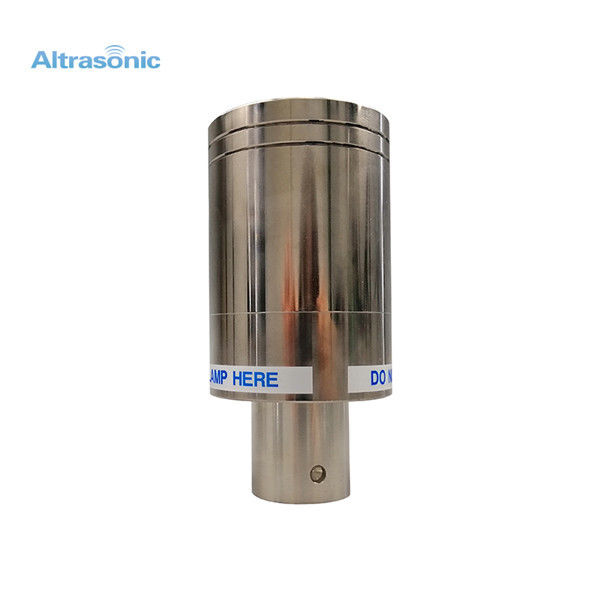

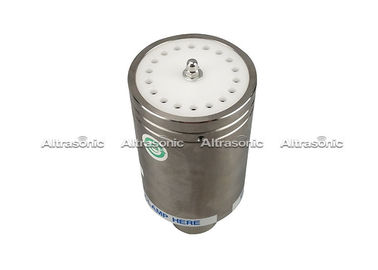

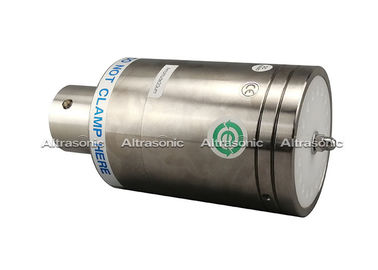

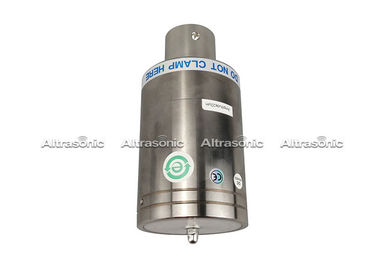

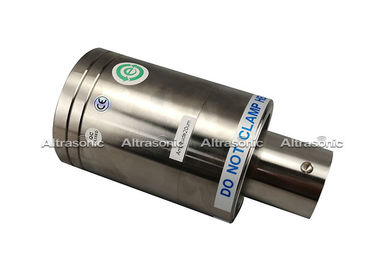

20khz 3000w Ultrasonic Converter Replacement Branson CJ20 For Welding Machine
Specifications:
| Model | HSBCJ20 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 6 pcs |
| Capacitance | 19-21 nf |
| Amplitude | 20 um |
| Application | welding machine |
Description:
The 2000 Watt 20 kHz Ultrasonic Converter Direct replacement for the Branson CJ-20 (101-135-059) , that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
Replacement Item Specification:
| Model |
Frequency (khz) |
Ca(PF) | Power(w) | Machine |
| Branson 402 | 19.6-20.0 | 7800-8500 | 450-900 | Branson8400 |
| Branson 502 | 19.6-20.0 | 11500-12500 | 2000 | Branson8800/5170 |
| Branson CJ20 | 19.4-19.7 | 19000-21000 | 1100-4000 | Branson2000 series |
| CB35A15A | 36.5-7.5 | 3300-4000 | 800 | Rinco-35A15A |
| CV231 | 38.3-39.0 | 3500-4500 | 900 | 40k Metal Welding |
| CV3510 | 36.2-37.0 | 3200-4000 | 800 | Rinco-CV3510 |
| Dukane 110-3122 | 19.6-20.0 | 12500-14000 | 2600 | Dukane Heavy Duty |
Why Pay More?
OEM converters have one of the highest markups of any industrial component you can buy. A high-quality replacement part such as this can result in significant savings, plus some of our customers tell us these converters run cooler and last longer than the OEM converters they replace.
Applied Range:
Ultrasonic transducers are widely used. They are divided into industry, agriculture, transportation, life, medical and military according to the applied industry. According to the functions realized, it is divided into ultrasonic processing, ultrasonic cleaning, ultrasonic detection, detection, monitoring, telemetry, remote control, etc.; according to the working environment, it is divided into liquid, gas, biological, etc.; according to the nature, it is divided into power ultrasonic, ultrasonic detection, ultrasonic imaging, etc.
Competitive Advantage:
1. Titanium materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
