Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine

Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine
Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine

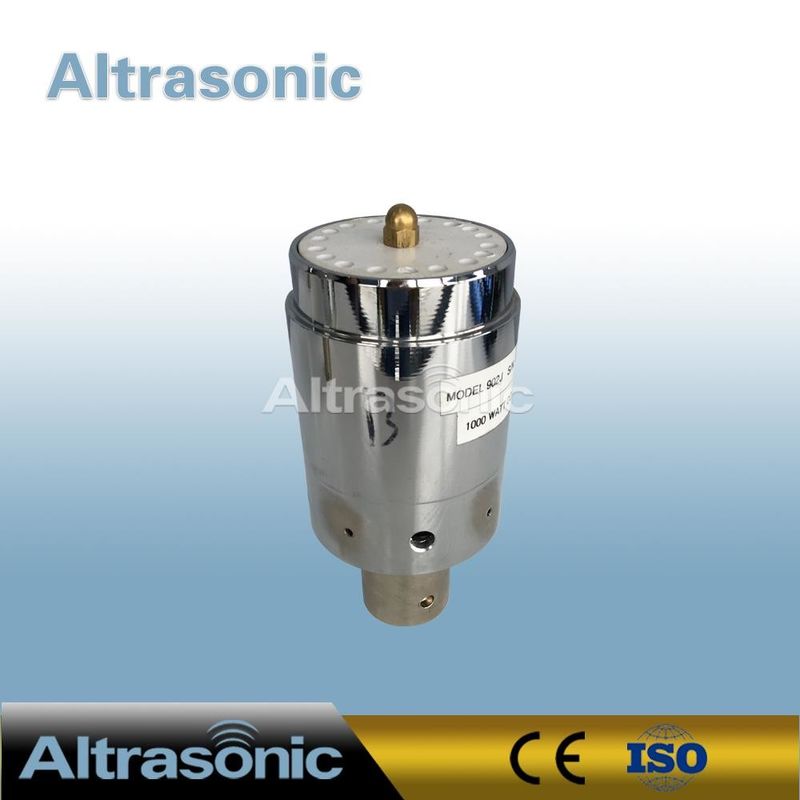

Large Image :  Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSB-922JA
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: packed in a wooden case.
Delivery Time: 7 workdays
Payment Terms: Western Union, T/T,paypal
Supply Ability: 5000 pieces/month

Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine

Description
Frequency: 20 Khz Output Power: 2000 Watt - 4000 Watt
Joint Bolt: 1/2-20UNF Ceramic Disc Diameter: 50 Mm
Quantity Of Ceramic Discs: 6 Pcs Amplitude: 20 Um
High Light:

piezo ultrasonic transducer

,

ultrasonic transducers

,

Ultrasonic Converter 20khz



20kHz Replacement Branson 922JA Ultrasonic Converter For Welding Machine





Specifications:



Model HSB922JA
Frequency 20 khz
Output power 2000 watt - 4000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 6 pcs
Capacitance Different item No., with different capacitance
Amplitude 20 um
Application welding machine





Description:



The Replacement Converter for Branson CJ20 , CR20 , 922JA , 902JA , 502,

Directly replaces Branson model 922JA Converter as used in 920 IW, IW+, AE, AES and AO actuator and IW machines.



You tell us the brand item No, and we can make it for you according to the brand items' No. or the original samples.

The housing can be custom - made according to your special requirements.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.



Why Pay More?



OEM converters have one of the highest markups of any industrial component you can buy. A high-quality replacement part such as this can result in significant savings, plus some of our customers tell us these converters run cooler and last longer than the OEM converters they replace.




Competitive Advantage:



1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

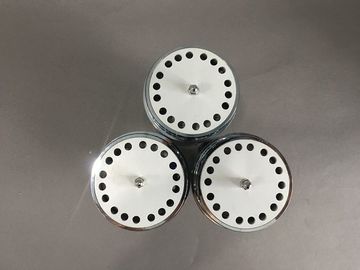

Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine 0

Workshop:



Replacement Branson 922JA 20khz Ultrasonic Converter For Welding Machine 1
