Product Details:
|
| Frequency: | 40kHz | Power: | 500-1000W |
|---|---|---|---|
| Connect Screw: | M8*1.25 | Ceramic Diameter: | 35mm |
| Qty Of Ceramic: | 2pcs | Capacitance: | 4-5nf |
| Application: | Welding | ||
| High Light: | piezo ultrasonic transducer,ultrasonic transducers |
||

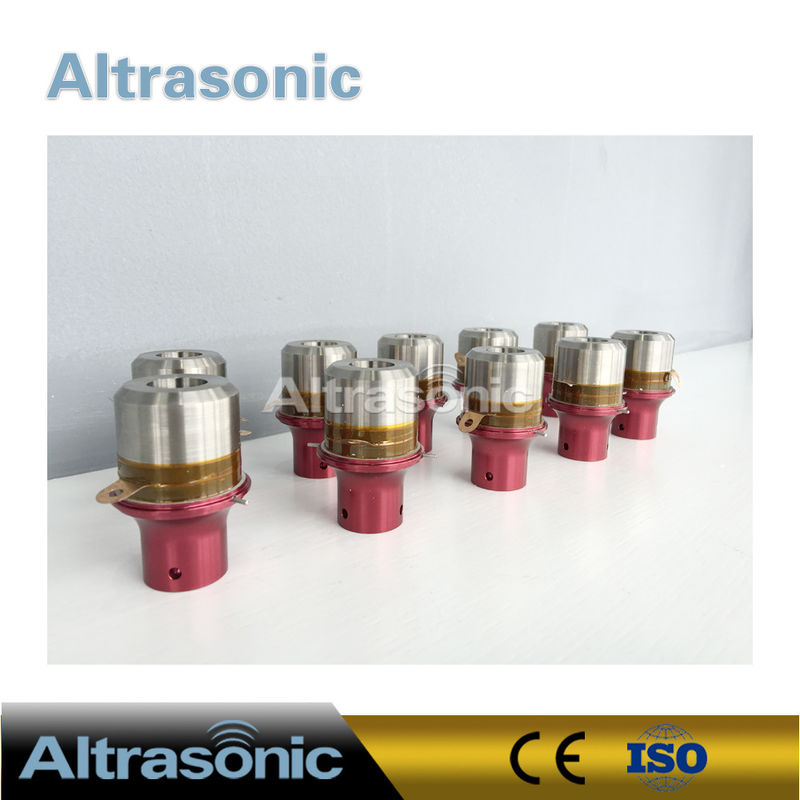

Hign frequency piezoelectric transducer ultrasound Dukane 40kHz replacement type converter
Specification:
| Minimum Order Quantity: | 2pcs |
| Price: | negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per month |
| Delivery Time: | 5 working days after received your payment |
| Packaging Details: | Packed in carton, and PE form inside |
| MODEL | FREQUENCY(KHz) | Ca(pf) | Power(W) | Machine |
| 402 | 19.6-20.0 | 7800-8500 | 450-900 | BRANSON8400 |
| 502 | 19.6-20.0 | 11500-12500 | 2000 | BRANSON8800/5170 |
| CJ20 | 19.4-19.7 | 19000-21000 | 1100-4000 | BRANSON2000 series |
| CB35A15A | 36.5-37.5 | 3300-4000 | 800 | Rinco-35A15A |
| CV231 | 38.3-39.0 | 3500-4500 | 900 | 40K Metal welding |
| CV3510 | 36.2-37.0 | 3200-4000 | 800 | Rinco-CV3510 |
| 110-3122 | 19.6~20.0 | 12500-14000 | 2600 | Dukane heavy duty |
Description:
1. High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
2. Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.
3. Big Power: under the function of the prestressed force screw rod, the piezoelectric ceramics can work freely in the highest level of power.
4. In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.
Applications:
Our transducer can applied in the following ultrasonic machines:
| Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
| Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
| Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Competitive Advantage:
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; we reputation from customer.
