Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing

China Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing supplier
Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing supplier Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing supplier

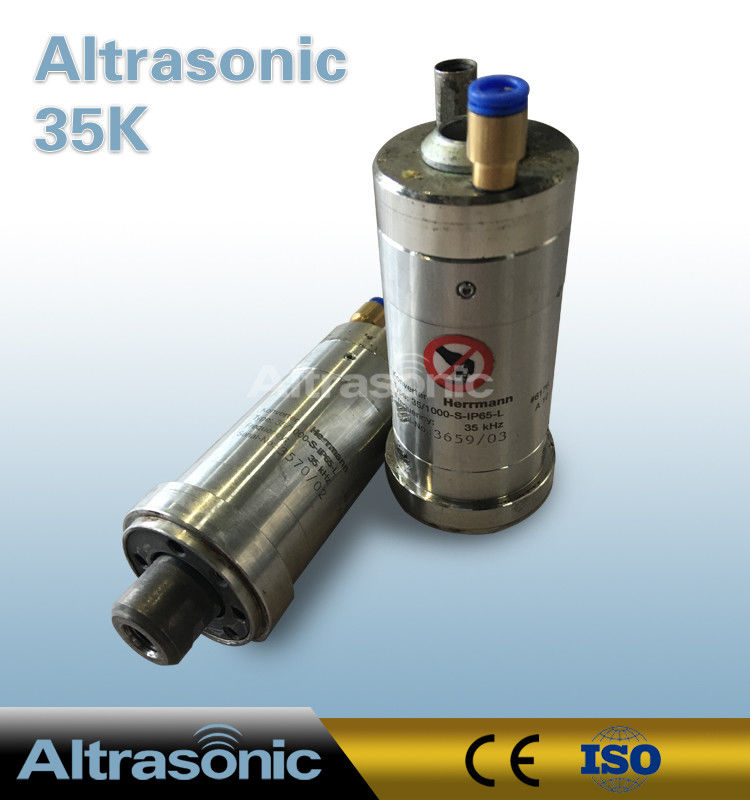

Large Image :  Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSHM35

Payment & Shipping Terms:

Minimum Order Quantity: 2 units
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Converter Frequency: 35Khz
Power: 1000w Capacitance: 5-8nf
Application: Welding Machine Material Of Booster: Titanium, Aluminum, Steel Materials Optional
Protective Housing: Aluminum And Stainless Steel Optional



Replacement 35Khz 1200Watt Herrmann Ultrasonic Converters With Protective Housing





Specifications:



Model HSHM35
Frequency 35 khz
Output power 1000 watt
Joint bolt M18 * 1.5
Capacitance 5000-8000pf
Amplitude 10 um
Application

welding machine





Description:



The 35 kHz Replacement Ultrasonic Herrmann Converters 35/1000-S-IP65 Type​is applied to Herrmann type ultrasonic welding machine.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applied Range:


Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.



Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.


Repair 35khz Ultrasonic Herrmann Converters 35/1000-S-IP65 Type

Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing

Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing

Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing
