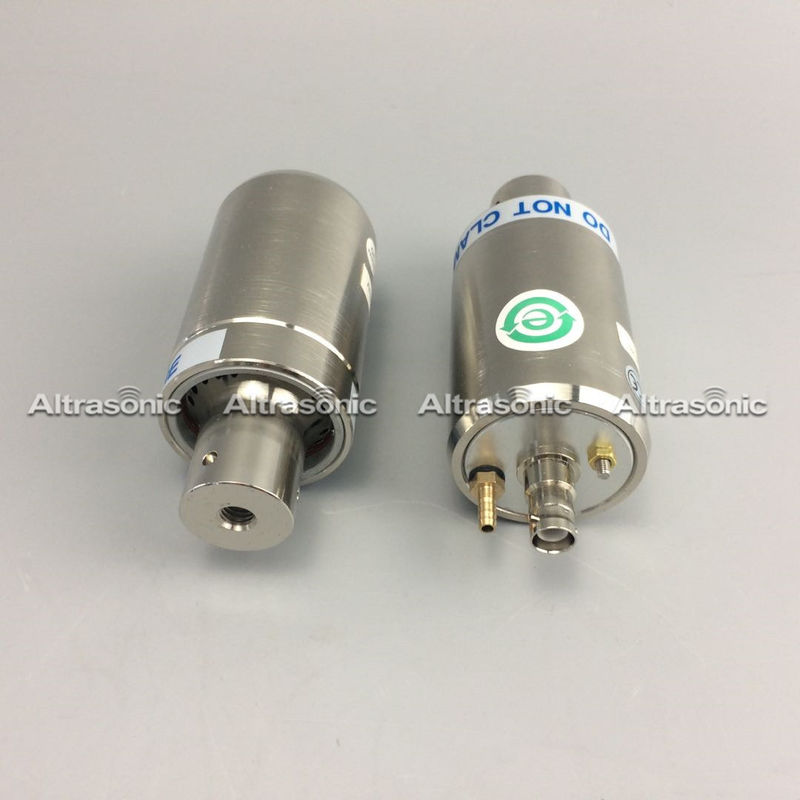

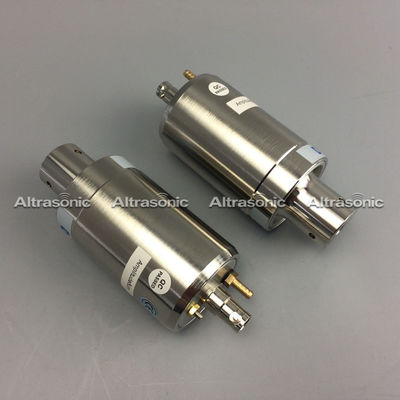

High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement

High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement
High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement

Large Image :  High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: Branson 4TH
Payment & Shipping Terms:
Minimum Order Quantity: 1 units
Price: negotiation
Packaging Details: Packed in carton,PE foam inside
Delivery Time: 14 weekdays after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 units per month

High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement

Description
Item No.: Branson 4TH Connect Screw: M8*1.25
Ceramic Diameter: 25mm Qty Of Ceramic: 4 Pcs
Frequency: 40kHz Colour Of The Ceramic: Yellow
Capacitance: 4200 Power: 800W
High Light:

piezo ultrasonic transducer

,

ultrasonic transducers





High Power 40Khz 800Watt Branson 4TH Replacement Ultrasonic Welding Transducer





Specifications:



Model                                                                      HSB4TH
Frequency 40 khz
Output power 800 watt
Joint bolt M8*1.25
Ceramic disc Diameter 25 mm
Quantity of Ceramic discs 4 pcs
Capacitance 4.2nf
Amplitude 6 um
Application welding machine





Description:



The Replacement Converter for Branson 4TH Direct replacement for the Branson 4TH that

delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance tha2t duplicates the OEM part.




Warranty:



We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).





Applied Range:


Replacement ultrasonic converter for Branson model 4TH, for use with 40KHz welding machine.





Competitive Advantage:



1. Titanium materials and Aluminum materials optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.





What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.







High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement 0



High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement 1

High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement 2

High Power 40 Khz Transducer , Ultrasound Transducer 800 Watt Branson 4TH Replacement 3
