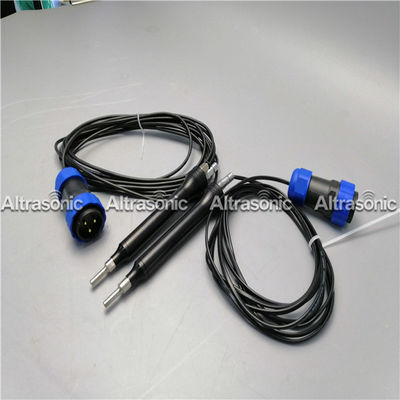

Black 2 PCs 100W High Frequency Ultrasound Transducer For Wire Embedding

China Black 2 PCs 100W High Frequency Ultrasound Transducer For Wire Embedding supplier
Black 2 PCs 100W High Frequency Ultrasound Transducer For Wire Embedding supplier Black 2 PCs 100W High Frequency Ultrasound Transducer For Wire Embedding supplier Black 2 PCs 100W High Frequency Ultrasound Transducer For Wire Embedding supplier

Large Image :  Black 2 PCs 100W High Frequency Ultrasound Transducer For Wire Embedding

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS1070-2Z

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in carton,PE foam inside
Delivery Time: 8 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month
Contact Now
Detailed Product Description
Connect Screw: M4 Ceramic Diameter: 10MM
Qty Of Ceramic: 2 PCs Frequency: 70kHz
Capacitance: 0.35-0.4nF Power: 100-300W
Max. Amplitude: 2um Color: Black Or Silver



High Frequency 2 PCs 100W Ultrasonic Transducer for Wire Embedding



Description:



The ultrasonic generator converts the power supply into a electrical signal. This signal is applied to piezoelectrical ceramics (included in the converter) that will convert this signal into mechanical oscillations

These oscillations will be amplified by the booster and converter, thus creating a hammer. The converter converts electricity into high frequency mechanical vibration. The active elements are usually piezoelectrics ceramics. The booster (optional) serves as an amplitude transformer. Amplitude magnification or reduction is achieved by certain design features or the geometrical shape of the booster.

The sonotrode, or horn, is the active part of the ultrasonic unit. It is in contact with the fabric and acts as a hammer against the counter-tool. This system will enable to melt the fibers within the fabric by mechanical action only (hammering), enabling to obtain a very clean and flexible melting without any burning or color change. The sonotrode and counter-tool design will be adapted to the operation to be performed.



Black 2 PCs 100W High Frequency Ultrasound Transducer For Wire Embedding



Specifications:



Model HS-1070-2z
Frequency 70khz
Output power 100watt
Joint bolt M4
Ceramic disc Diameter 10 mm
Quantity of Ceramic discs 2 pcs
Capacitance 0.34~0.4 nf ,
Amplitude 1um
Application Welding



Features :

  1. good heat resistance
  2. large range of working temperature
  3. low resonance impedance and heat productivity
  4. good construction
  5. fastened by bolt
  6. easy for assembling

Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation



Applications:



Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.

We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.



Company introduction:



Altrasonic was founded in July 2014. International Marketing Department is in Hangzhou, and Technical and Production Department is in Taicang, Jiangsu. Altrasonic specializes in the development and sales of ultrasonic welding machine, ultrasonic cutting system, ultrasonic non-standard automation equipment. Based on market demand and production reality, the company has been constantly innovating and developing, adhering to the quality-oriented, and improving after-sales service has enabled the company to achieve rapid development.

Today, Altrasonic is one of the leading companies worldwide in this specialist field.



Black 2 PCs 100W High Frequency Ultrasound Transducer For Wire Embedding

Black 2 PCs 100W High Frequency Ultrasound Transducer For Wire Embedding

Black 2 PCs 100W High Frequency Ultrasound Transducer For Wire Embedding
