Piezoelectric Ceramic Ultrasonic Converter For Welding , High Power Ultrasound Transducer

China Piezoelectric Ceramic Ultrasonic Converter For Welding , High Power Ultrasound Transducer supplier
Piezoelectric Ceramic Ultrasonic Converter For Welding , High Power Ultrasound Transducer supplier Piezoelectric Ceramic Ultrasonic Converter For Welding , High Power Ultrasound Transducer supplier Piezoelectric Ceramic Ultrasonic Converter For Welding , High Power Ultrasound Transducer supplier

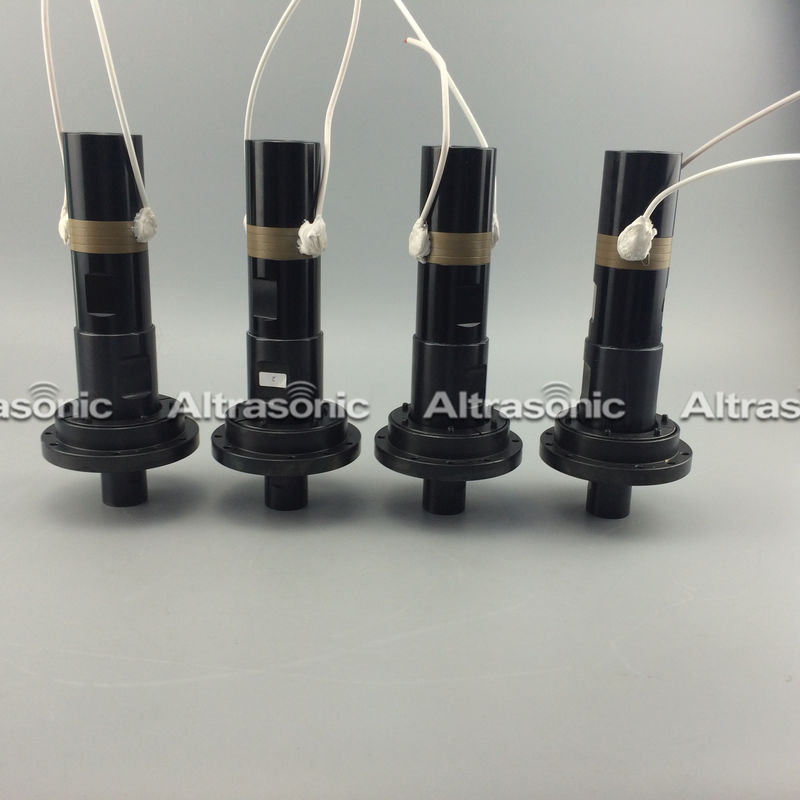

Large Image :  Piezoelectric Ceramic Ultrasonic Converter For Welding , High Power Ultrasound Transducer

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS5020-4D

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in carton,PE foam insid
Delivery Time: 8 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month
Contact Now
Detailed Product Description
Item No.: 5020-4D Frequency: 20kHz
Power: 1500W Ceramic Diameter: 50mm
Connect Screw: 1/2-20UNF Qty Of Ceramic: 4 PCs
Color: Black



20kHz High Power Piezoelectric ceramic Ultrasonic Converter for Welding



Specification:



Model HS-5020-4D
Frequency 20 Khz
Output power 1500 W
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance 11~12 nF
Amplitude 12 um
Application Welding



Ultrasonic Transducer:


1.factory price with prompt delivery
2.High performance
3.high amplitude



Description :



Ultrasonic transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The Ultrasonic transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices.



Piezoelectric Ceramic Ultrasonic Converter For Welding , High Power Ultrasound Transducer





Features :

  1. good heat resistance
  2. large range of working temperature
  3. low resonance impedance and heat productivity
  4. good construction
  5. fastened by bolt
  6. easy for assembling



Application:



The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detedction, testing, monitoring, remote sensing, remote control, etc. According to the working environment is divided into liquid, gas, biology, etc. According to the nature of the divided into power ultrasonic and detection of ultrasonic, ultrasonic imaging, etc.



Company introduction:



Altrasonic was founded in July 2014. International Marketing Department is in Hangzhou, and Technical and Production Department is in Taicang, Jiangsu. Altrasonic specializes in the development and sales of ultrasonic welding machine, ultrasonic cutting system, ultrasonic non-standard automation equipment. Based on market demand and production reality, the company has been constantly innovating and developing, adhering to the quality-oriented, and improving after-sales service has enabled the company to achieve rapid development.

Today, Altrasonic is one of the leading companies worldwide in this specialist field.





Piezoelectric Ceramic Ultrasonic Converter For Welding , High Power Ultrasound Transducer

Piezoelectric Ceramic Ultrasonic Converter For Welding , High Power Ultrasound Transducer

Piezoelectric Ceramic Ultrasonic Converter For Welding , High Power Ultrasound Transducer
