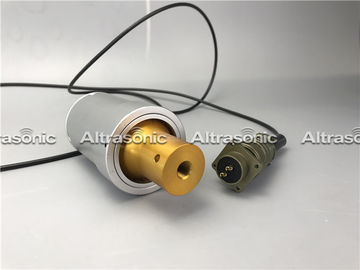

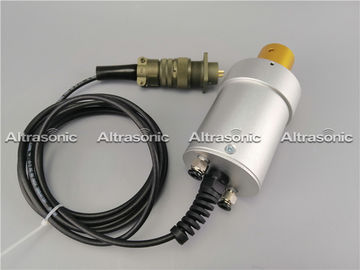

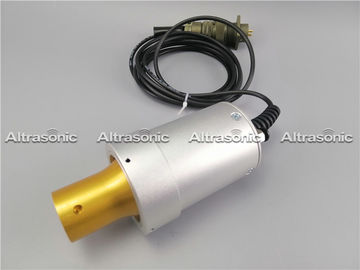

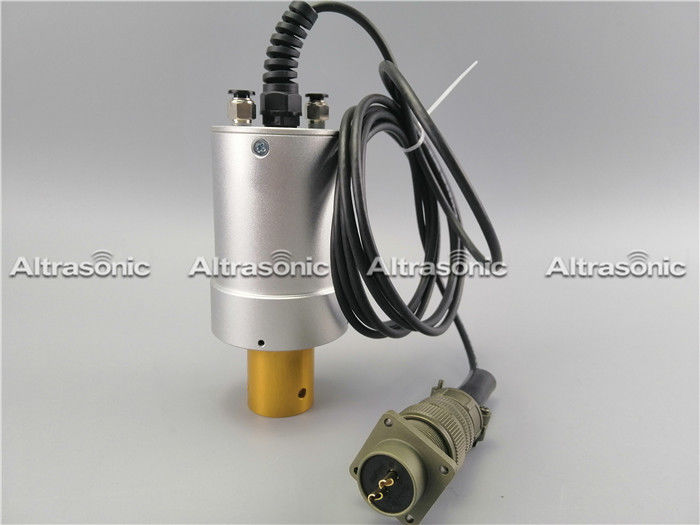

Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding

China Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding supplier
Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding supplier Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding supplier Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding supplier Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding supplier

Large Image :  Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSD41S30

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 10,000 units per month
Contact Now
Detailed Product Description
Product Name: Replacement Transducer For Dukane 41S30 Frequency: 20 Khz
Ceramic Diameter: 50 Mm Capacitance: 11000pf
Power: 1000 W -3000w Application: Welding Machine
Amplitude: 20 Um Ceramic Disc: 4 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional



Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding



Specifications:



Model

HSD41S30

Frequency

20 khz

Output power

1000 watt - 3000 watt

Joint bolt

1/2-UNF

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

4  pcs

Capacitance

11000 pf

Amplitude

20 um

Application

welding machine



Description:



The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane 41S30​ is applied to Dukane type ultrasonic welding machine.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.





Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.





What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.






High Power Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding





Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding

Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding

Replacement 20Khz Dukane 41S30 Ultrasonic Converter For Plastic Welding
