Product Details:
|
| Product Name: | Rinco 20K | Connect Screw: | M16*2 |
|---|---|---|---|
| Ceramic Diameter: | 50mm | Qty Of Ceramic: | 2pcs |
| Frequency: | 20Khz | Capacitance: | 5nf |
| Power: | 3000Watt | Amplitude: | 20um |
| High Light: | piezo ultrasonic transducer,ultrasonic transducers |
||

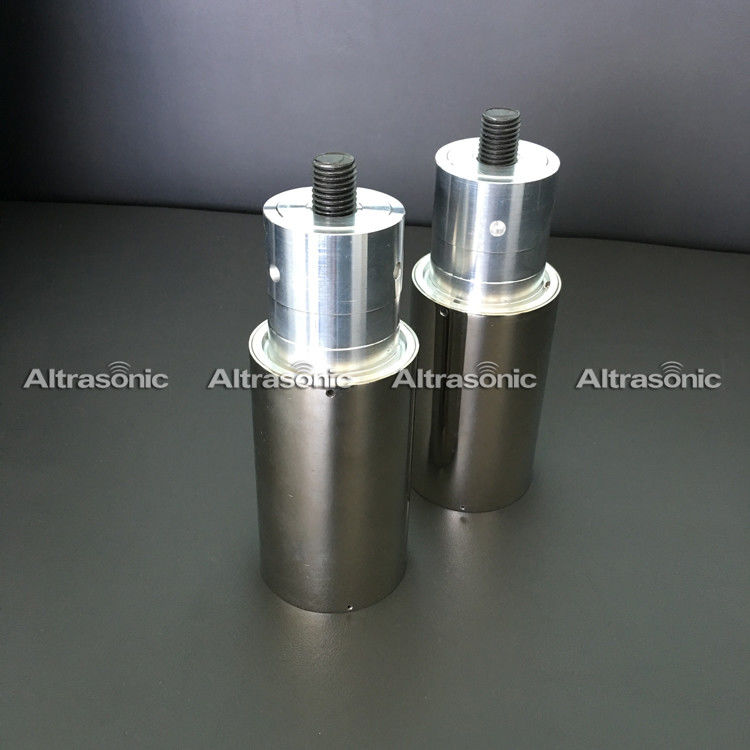

Rinco 3000 Watt Replacement Ultrasonic Converter , Ultrasonic Transducer Welding
Description:
Ultrasonic transducers generally have two types: magnetostrictive transducers and piezoelectric crystal transducers. One of the most mature and reliable is the device that converts electrical energy and acoustic energy by piezoelectric effect, called piezoelectric transducer. The piezoelectric effect of the material converts electrical signals into mechanical vibration. The transducer has high electro-acoustic conversion efficiency, low raw material price, convenient production, and is not easy to age.
Specification:
| Item No. | Rinco 20K Replacement |
| Frequency | 20Khz |
| Power | 3000Watt |
| Connect screw | M16*2 |
| Ceramic diameter | 50mm |
| Qty of ceramic | 2pcs |
| Capacitance | 5nF |
| Amplitude | 20um |
Application:
1. Piezoelectric ceramic transformer
2. Ultrasonic motor
3. Ultrasonic cleaning
4. Ultrasonic machining
5. Ultrasonic weight loss
6. Ultrasonic breeding
7. Electronic blood pressure gauge
8. Remote control
9. Range
Competitive Advantage:
1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Warranty:
We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
High Power Rinco 20Khz 3000Watt Replacement Ultrasonic Converter For Plastic Welding
