20K Ultrasonic Assisted Machining For Drilling Or Milling In Mould Industry

China 20K Ultrasonic Assisted Machining For Drilling Or Milling In Mould Industry supplier
20K Ultrasonic Assisted Machining For Drilling Or Milling In Mould Industry supplier 20K Ultrasonic Assisted Machining For Drilling Or Milling In Mould Industry supplier 20K Ultrasonic Assisted Machining For Drilling Or Milling In Mould Industry supplier

Large Image :  20K Ultrasonic Assisted Machining For Drilling Or Milling In Mould Industry

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $7000 - $ 10000
Packaging Details: Inner case, then put in wooden carton
Delivery Time: 15 - 35 workdays
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Power: 500-1000W Frequency: 20Khz/40Khz

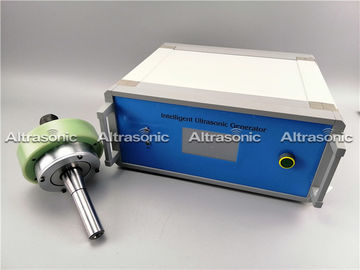

Generator: Digital, Auto-tuning Application: Ultrasonic Drilling/Milling/Cutting
Resonance Point Amplitude: 10um Or More Speed: 3000 - 10000 R/min

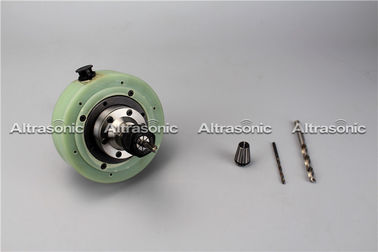

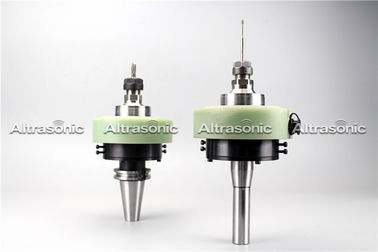

Matching Tool: Mill Head Φ2-Φ13; Disk Cutter Φ50; Dilling Head Φ2-Φ6 Length Of Cable: 3M Or Customized
Tolerance: +/- 0.02mm Or Customized, 0.005mm, +/-0.01mm, 0.005-0.01 Voltage: 110V- 240V

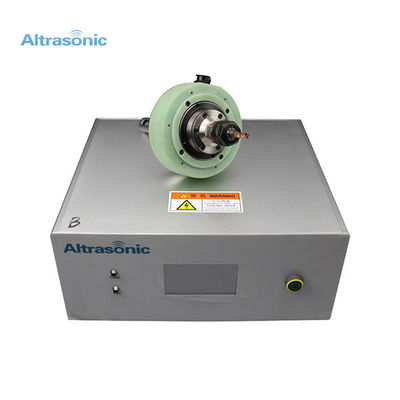

20K Ultrasonic Machining Assist For High Quality Drilling or Milling In Mould industry



Description:



Ultrasonic machining, or strictly speaking the "Ultrasonic vibration machining", is a subtraction manufacturing process that removes material from the surface of a part through high frequency, low amplitude vibrations of a tool against the material surface in the presence of fine abrasive particles.



Ultrasonic machining mechanism:



Ultrasonic machining is a molding processing method that uses the ultrasonic vibration of the tool end face to process hard and brittle materials through the abrasive suspension. Its processing materials are as follows:

20K Ultrasonic Assisted Machining For Drilling Or Milling In Mould Industry



The ultrasonic generator generates a high-frequency alternating current signal of 16Khz or more, which is sent to the ultrasonic transducer, converted into ultrasonic mechanical vibration, and the amplitude is amplified by the booster, so that the tool at the lower end of the horn is strongly vibrated. Driven by the tool, the suspension containing water and abrasive also generates strong vibrations and constantly impacts the surface of the workpiece. During processing, the tool is lightly pressed against the workpiece with a small force. The surface of the workpiece is impacted by the high frequency of the abrasive at a high speed and acceleration, and is pulverized into fine particles, which are detached from the surface of the workpiece. Although the volume of particles generated by each impact is small, there are still some processing speeds due to the number of impacts per second as many as 16,000 times. The circulating flow of the suspension takes away the particles that have fallen off and the abrasive is continuously renewed. At the same time, the suspension is subjected to hydraulic shock and cavitation by ultrasonic vibration at the end of the tool, which also accelerates the mechanical damage of the workpiece surface. The tool is continuously fed, the machining process continues, and the shape edges of the tool are "copied" on the workpiece until the desired size and shape are achieved.



Technical Parameters:



Frequency 20Khz/40Khz
Output Power 500-1000W
Voltage 110- 240V
Speed 3000 - 10000 r/min
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic Drilling/Milling/Cutting
Generator Digital Generator, auto-tuning
Resonance point amplitude 10um or more
Matching tool mill head Φ2-Φ13; disk cutter Φ50; dilling head Φ2-Φ6
Length of cable 3M or Customized





Advantages:

  • Machined all sorts of hard materials
  • Produces fine finished and structured results
  • Produces less heat
  • Various hole cut shapes due to vibratory motion of the tool



Applications:



It is suitable for punching, cutting, grooving, nesting, engraving, etc. of various hard and brittle materials such as glass, quartz, ceramic, silicon, ferrite, gemstone and jade. Batch deburring of small parts, surface polishing of the mold and dressing of the grinding wheel.
