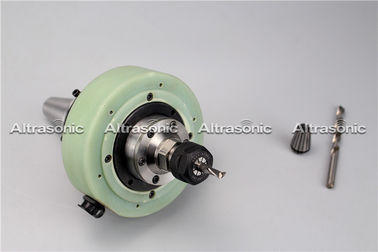

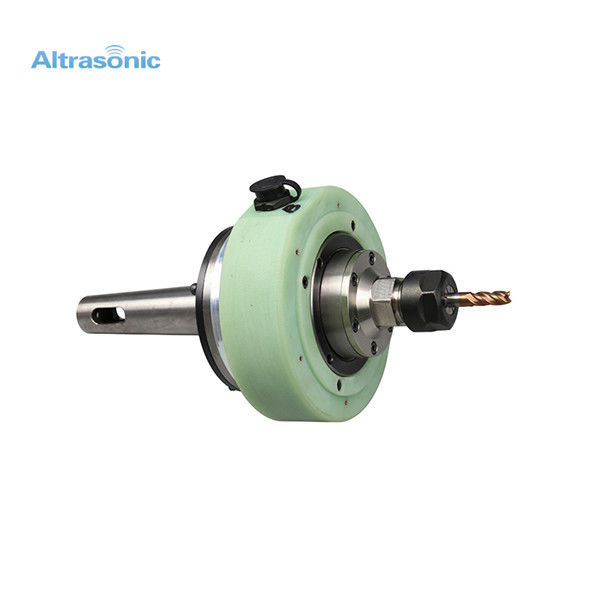

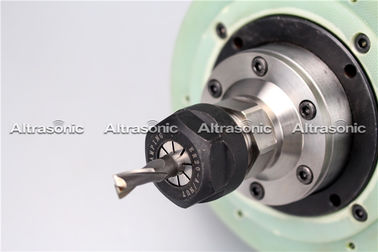

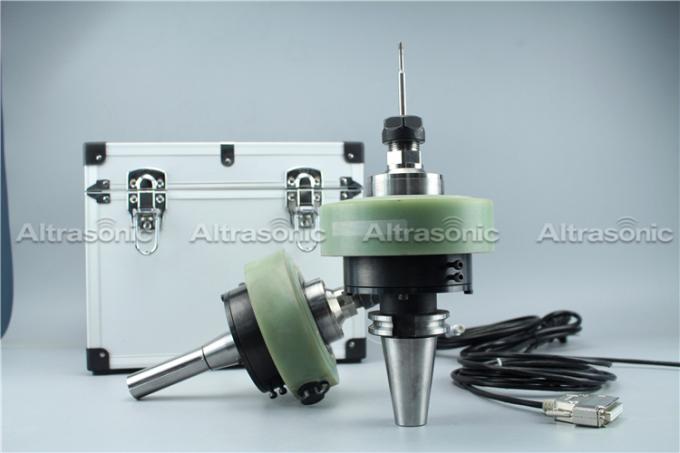

High Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate Processing

China High Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate Processing supplier
High Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate Processing supplier High Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate Processing supplier

Large Image :  High Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate Processing

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $7000 - $ 10000
Packaging Details: Inner case, then put in wooden carton
Delivery Time: 15 - 35 workdays
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Power: 500-1000W Frequency: 20Khz/40Khz

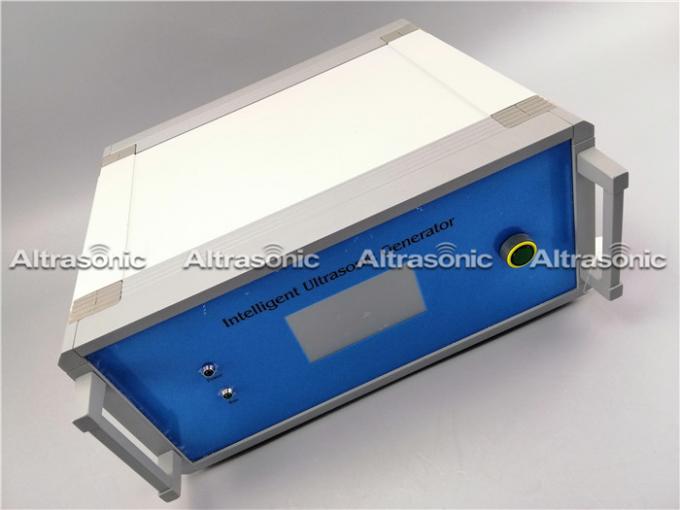

Generator: Digital, Auto-tuning Application: Ultrasonic Drilling/Milling/Cutting
Resonance Point Amplitude: 10um Or More Speed: 3000 - 10000 R/min
Matching Tool: Mill Head Φ2-Φ13; Disk Cutter Φ50; Dilling Head Φ2-Φ6 Length Of Cable: 3M Or Customized
Tolerance: +/- 0.02mm Or Customized, 0.005mm, +/-0.01mm, 0.005-0.01 Voltage: 110V- 240V



High Speed 20K Ultrasonic Spindle For Spline, Gear and Thread Elaborate Processing



Description:



Ultrasonic machining is non-traditional machining process which is used to machine brittle and hard material. This machining process comes into existence in 1950 for finishing EDM surface. Now this process is used in many industries to remove metal due to its lower cost, no heat generation, and effective machining.

Principle:

It works on the same principle of ultrasonic welding. This machining uses ultrasonic waves to produce high frequency force of low amplitude, which act as driving force of abrasive. Ultrasonic machine generates high frequency vibrating wave of frequency about 20000 to 30000 Hz and amplitude about 25-50 micron. This high frequency vibration transfer to abrasive particle contains in abrasive slurry. This leads indentation of abrasive particle to brittle work piece and removes metal from the contact surface.

High Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate Processing




Technical Parameters:



Frequency 20Khz/40Khz
Output Power 500-1000W
Voltage 110- 240V
Speed 3000 - 10000 r/min
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic Drilling/Milling/Cutting
Generator Digital Generator, auto-tuning
Resonance point amplitude 10um or more
Matching tool mill head Φ2-Φ13; disk cutter Φ50; dilling head Φ2-Φ6
Length of cable 3M or Customized





Advantages:

  • Hard material can be easily machined by this method.
  • No heat generated in work so there is no problem of work hardening or change in structure of work piece.
  • Non-conductive metals or non-metals, which cannot be machined by ECM of EDM can be machined by it.
  • It does not form chips of significant size.



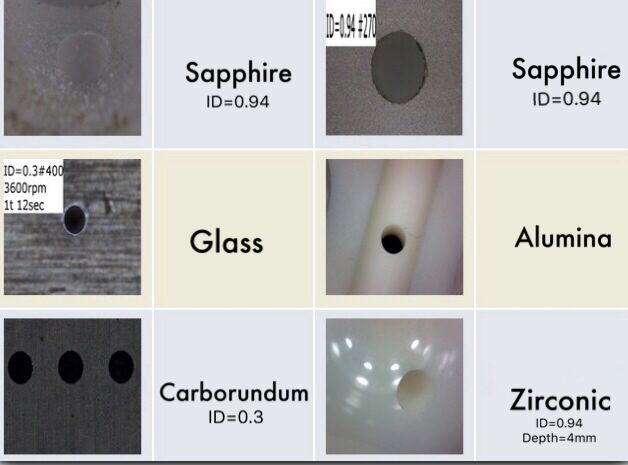

Applications:

  • This machining is used to machine hard and brittle material like carbide, ceramic, glass etc.
  • This is used in machining of die and tool of drill, wire drawing machine etc.
  • Used in fabrication of silicon nitrite turbine blade.
  • It is used to cut diamond in desire shape.
  • It is used machining of machining non-conductive hard material which cannot be machined by ECM or EDM due to poor conductivity.





High Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate Processing

High Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate ProcessingHigh Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate ProcessingHigh Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate Processing







High Speed Ultrasonic Spindle For Spline Gear And Thread Elaborate Processing
