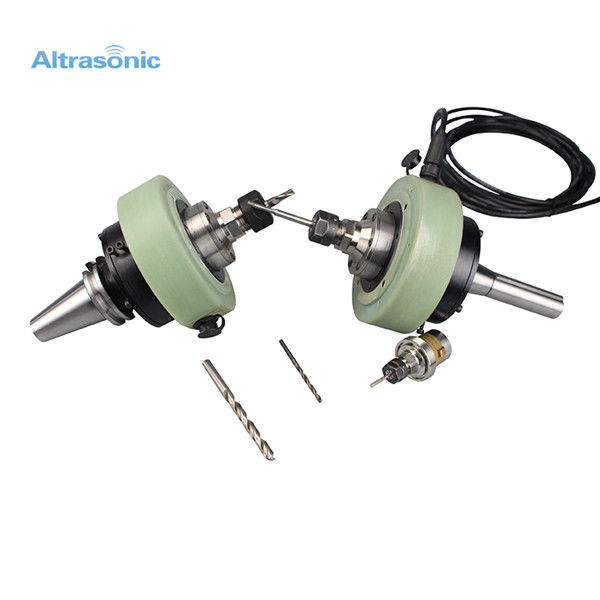

1000W Rotary Ultrasonic Assisted Machining Drilling Or Milling For Ceramic

China 1000W Rotary Ultrasonic Assisted Machining Drilling Or Milling For Ceramic supplier
1000W Rotary Ultrasonic Assisted Machining Drilling Or Milling For Ceramic supplier 1000W Rotary Ultrasonic Assisted Machining Drilling Or Milling For Ceramic supplier 1000W Rotary Ultrasonic Assisted Machining Drilling Or Milling For Ceramic supplier

Large Image :  1000W Rotary Ultrasonic Assisted Machining Drilling Or Milling For Ceramic

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $7000 - $ 10000
Packaging Details: Inner case, then put in wooden carton
Delivery Time: 15 - 35 workdays
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Power: 500-1000W Frequency: 20Khz/40Khz
Generator: Digital, Auto-tuning Application: Ultrasonic Drilling/Milling/Cutting
Resonance Point Amplitude: 10um Or More Speed: 3000 - 10000 R/min
Matching Tool: Mill Head Φ2-Φ13; Disk Cutter Φ50; Dilling Head Φ2-Φ6 Length Of Cable: 3M Or Customized
Tolerance: +/- 0.02mm Or Customized, 0.005mm, +/-0.01mm, 0.005-0.01 Voltage: 110V- 240V

20K 1000W Rotary Ultrasonic Machining, High Quality Drilling or Milling For Ceramic



Description:



Ultrasonic milling is a new type of ultrasonic processing technology, which USES simple shape tool, based on hierarchical in rapid prototyping manufacturing, using the method of layered removal machining hard and brittle materials, it has a simple tool making, small macro forces between tool and workpiece, tool wear can be compensated, which can realize complex three-dimensional contour machining, etc.



Main parts:

Power Source: As we know, this machining process requires high frequency ultrasonic wave. So a high frequency high voltage power supply require for this process. This unit converts low frequency electric voltage (60 Hz) into high frequency electric voltage (20k Hz).

Magnetostrictive transducer: Transducer is a device which converts electric single into mechanical vibration. In ultrasonic machining magnetostrictive type transducer is used to generate mechanical vibration. This transducer is made by nickel or nickel alloy.



Booster: The mechanical vibration generated by transducer is passes through booster which amplify it and supply to the horn.



Tool: The tool used in ultrasonic machining should be such that indentation by abrasive particle, does not leads to brittle fracture of it. Thus the tool is made by tough, strong and ductile materials like steel, stainless steel etc.



Tool holder or Horn: As the name implies this unit connects the tool to the transducer. It transfers amplified vibration from booster to the tool. It should have high endurance limit.



Abrasive Slurry: A water based slurry of abrasive particle used as abrasive slurry in ultrasonic machining. Silicon carbide, aluminum oxide, boron carbide are used as abrasive particle in this slurry. A slurry delivery and return mechanism is also used in USM.





Technical Parameters:



Frequency 20Khz/40Khz
Output Power 500-1000W
Voltage 110- 240V
Speed 3000 - 10000 r/min
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic Drilling/Milling/Cutting
Generator Digital Generator, auto-tuning
Resonance point amplitude 10um or more
Matching tool mill head Φ2-Φ13; disk cutter Φ50; dilling head Φ2-Φ6
Length of cable 3M or Customized





Advantages:



1. It is not limited by the conductivity of materials. It is suitable for punching, cutting, grooving, nesting, engraving, etc. of various hard and brittle materials such as glass, quartz, ceramic, silicon, ferrite, gemstone and jade. Batch deburring of small parts, surface polishing of the mold and dressing of the grinding wheel.

2. The processing precision is high and the surface quality is high. The aperture diameter of ultrasonic drilling is 0.1~90mm, the processing depth can reach more than 100mm, and the precision of the hole can reach 0.02~0.05mm. The surface roughness of the glass treated with W40 boron carbide abrasive can reach 1.25~0.63um, the processed hard alloy can reach 0.63~0.32um, and the processed surface has no structural change, residual stress and burn.

3. The tool has small macroscopic force on the workpiece, small heat influence, can process thin wall, narrow slit and sheet workpiece, and can process various complex cavities and profiles as long as the workpiece is made into corresponding shapes and sizes.



Applications:

  • This machining is used to machine hard and brittle material like carbide, ceramic, glass etc.
  • This is used in machining of die and tool of drill, wire drawing machine etc.
  • Used in fabrication of silicon nitrite turbine blade.
  • It is used to cut diamond in desire shape.
  • It is used machining of machining non-conductive hard material which cannot be machined by ECM or EDM due to poor conductivity.

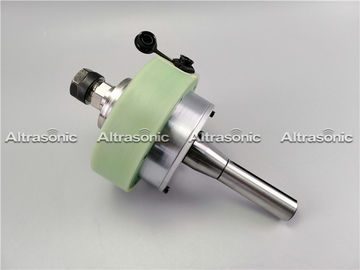

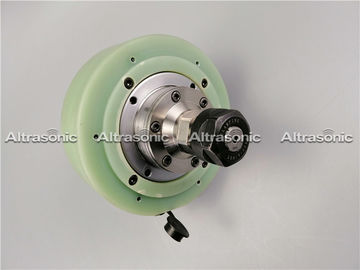

1000W Rotary Ultrasonic Assisted Machining Drilling Or Milling For Ceramic

1000W Rotary Ultrasonic Assisted Machining Drilling Or Milling For Ceramic1000W Rotary Ultrasonic Assisted Machining Drilling Or Milling For Ceramic







1000W Rotary Ultrasonic Assisted Machining Drilling Or Milling For Ceramic
