Replacement Telsonic Ultrasonic Converter Stainless Protective Housing And High Power

China Replacement Telsonic Ultrasonic Converter Stainless Protective Housing And High Power supplier
Replacement Telsonic Ultrasonic Converter Stainless Protective Housing And High Power supplier Replacement Telsonic Ultrasonic Converter Stainless Protective Housing And High Power supplier

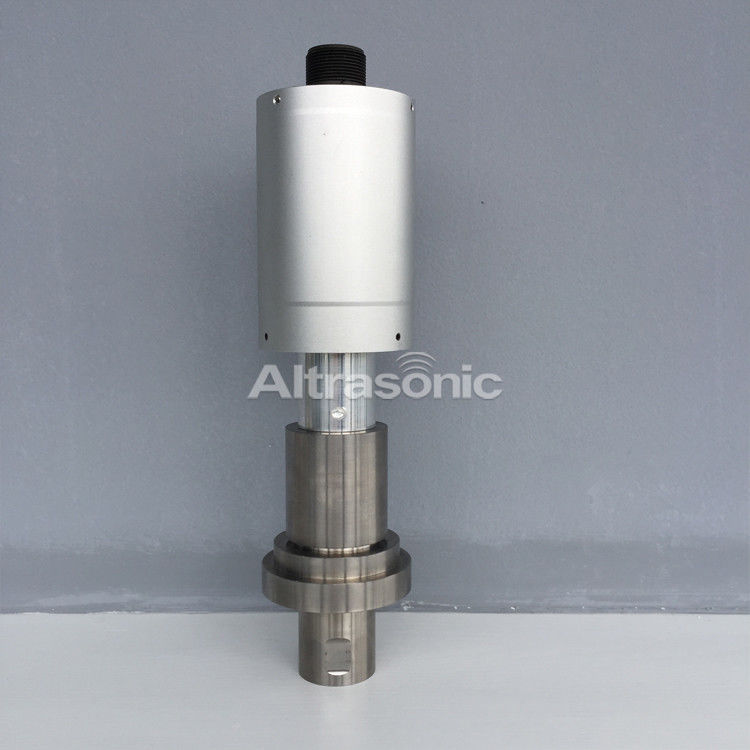

Large Image :  Replacement Telsonic Ultrasonic Converter Stainless Protective Housing And High Power

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSTL20

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton, PE foam inside
Delivery Time: 5 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Frequency: 20Khz
Ceramic Diameter: 50MM Capacitance: 10nf
Power: 2500watt Application: Welding Machine
Amplitude: 12Um Ceramic Disc: 4Pcs
Material Of Booster: Titanium Material Protective Housing: Aluminum And Stainless Steel Optional



20Khz Replacement Telsonic Ultrasonic Welding Converter With Stainless Protective Housing And High Power



Specification:



Model HSTL20
Frequency 20khz
Output power 2500watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Quantity of Ceramic discs 4 pcs
Capacitance 10nf
Amplitude 12um
Application welding machine



Description:



The 20Khz Replacement Telsonic Ultrasonic Converter is applied to Telsonic type ultrasonic welding machine.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs exp and and contract, producing axial vibrations.



Applied Range:


Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.


Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing     will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



20Khz Replacement Telsonic Ultrasonic Welding Converter With Stainless Protective Housing And High Power

Replacement Telsonic Ultrasonic Converter Stainless Protective Housing And High Power









Tag: ultrasonic piezoelectric transducer,high frequency ultrasonic transducer
