30 Khz Ultrasonic Cutting Machine Plastic Handheld Ultrasonic Cutter For Bumpers

China 30 Khz Ultrasonic Cutting Machine Plastic Handheld Ultrasonic Cutter For Bumpers supplier
30 Khz Ultrasonic Cutting Machine Plastic Handheld Ultrasonic Cutter For Bumpers supplier 30 Khz Ultrasonic Cutting Machine Plastic Handheld Ultrasonic Cutter For Bumpers supplier 30 Khz Ultrasonic Cutting Machine Plastic Handheld Ultrasonic Cutter For Bumpers supplier

Large Image :  30 Khz Ultrasonic Cutting Machine Plastic Handheld Ultrasonic Cutter For Bumpers

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSPC30

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $45-$2800
Packaging Details: wooden case
Delivery Time: 10-15days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 1000sets per month
Contact Now
Detailed Product Description

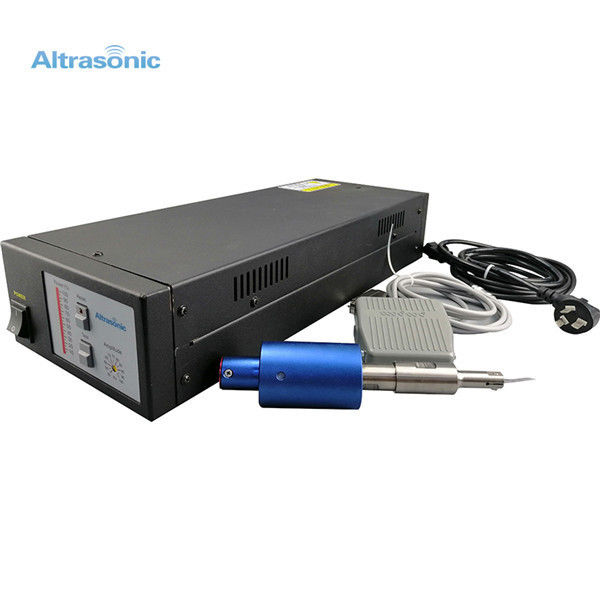

30Khz Ultrasonic Plastic Cutter For Bumpers



Description:



The mechanical vibration energy generated by the ultrasonic generator exceeds 20,000 blade vibration per second, which will heat and melt the part of the cutting material, causing the molecular chain to break apart rapidly. thus achieving the purpose of cutting the material, therefore, ultrasonic cutting does not require a particularly sharp blade, nor does it require a lot of pressure, which will not cause breakage and breakage of the cutting material. at the same tine, due to the ultrasonic vibration knife, friction is small, by reducing the material is not easy to adhere to the blade. viscous and elastics, frozen food , rubber or objects which is inconvennient to add pressure to cut, are especially effective.



Specification:



Model HSPC30
Frequency 30KHZ
Output Power 200W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V

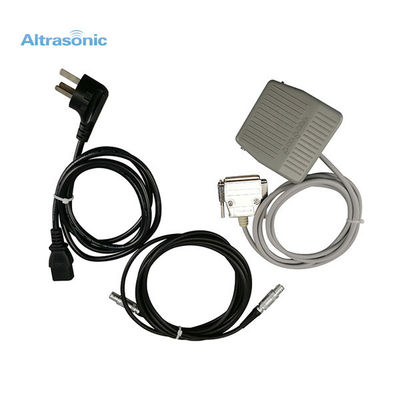

Accessory Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs

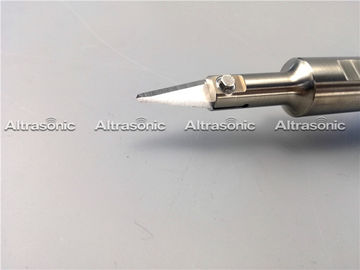

Material of blade titanium alloy, stainless steel



Advantages:



The advantage of ultrasonic cutting is that it has a fusion effect on the cutting site at the same time.The cutting part is perfectly hemmed to prevent loose organization of the cutting material (such as the flying edge of textile material).



Applications:



1. Cutting and punching plastic and thermoplastic doors.

2. Cut food and plants, such as frozen meat, candy, and chocolate.

3. For PVC, rubber, leather, plastics, cardboard, polypropylene, etc.

4. Cutting in the auto industry



30 Khz Ultrasonic Cutting Machine Plastic Handheld Ultrasonic Cutter For Bumpers



30 Khz Ultrasonic Cutting Machine Plastic Handheld Ultrasonic Cutter For Bumpers30 Khz Ultrasonic Cutting Machine Plastic Handheld Ultrasonic Cutter For Bumpers
