Customized Plastic Ultrasonic Converter With Different Frequency for welding

China Customized Plastic Ultrasonic Converter With Different Frequency for welding supplier
Customized Plastic Ultrasonic Converter With Different Frequency for welding supplier Customized Plastic Ultrasonic Converter With Different Frequency for welding supplier Customized Plastic Ultrasonic Converter With Different Frequency for welding supplier

Large Image :  Customized Plastic Ultrasonic Converter With Different Frequency for welding

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: Various series

Payment & Shipping Terms:

Minimum Order Quantity: 2 units
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Converter Application: Plastic/Metal Welding Machine
Material: Material: Titanium, Aluminum Materials Optional Protective Out: Aluminum And Stainless Steel Optional
Frequency Range: 15kHz-70kHz Customized: Size, Appearance, Connector Could Be Customized As Per Request

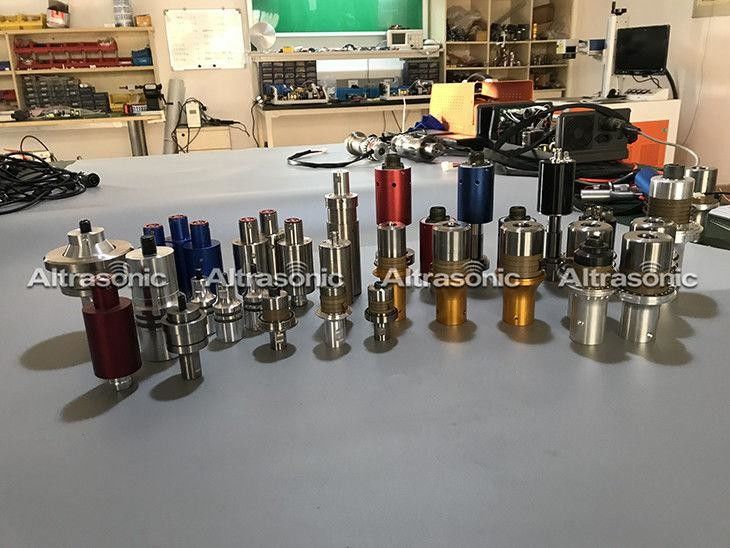

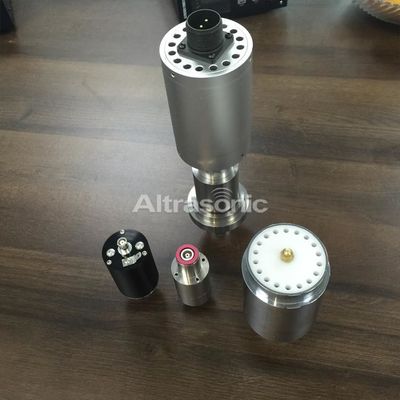

Customized Ultrasonic Converter with Different Frequency






Description:


We can provide customized ultrasonic converter with different frequency.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.







Replacement Item:



Item No Connect Screw (Size) Ceramic diameter
(mm)
Qty of ceramic
(PC)
Frequency(khz) Resistance(Ω) Color of ceramic Capacitance Input Power
(W)
Branson CJ20 1/2-20UNF 50 6 19.90 10 Yellow 20000 3300
Branson 502 1/2-20UNF 50 6 19.90 10 Yellow 20000 3300
Branson 402 M8*1.25 25 4 39.60 10 Yellow 4200 800
Branson 4TH M8*1.25 25 4 39.90 10 Yellow 4200 800
Branson 902 1/2-20UNF 40 4 19.85 10 Yellow 8000 1100
Branson 922J 1/2-20UNF 50 6 19.90 10 Yellow 20000 2200
Dukane 40K M8*1.25 35 2 39.80 5 Gray 3000 800
Dukane 20K 1/2-20UNF 50 2 19.50 10 Yellow 11000 2000
Dukane 110-3122 1/2-20UNF 50 4 19.50 10 Yellow 11000 2000
Dukane 110-3168 1/2-20UNF 45 2 19.50 10 Yellow 4000 800
Rinco 35K M8*1.25 25 2 34.80 50 Yellow 2000 900
Rinco 20K M16*2 50 2 19.90 50 Yellow 5000 3000
Telsonic 35K M8*1.25 25 4 35.00 5 Yellow 4000 1200
Telsonic 20K 1/2-20UNF 50 4 20.00 3 Yellow 10000 2500





Competitive Advantage:



1. High conversion efficiency

2. Low price of raw materials

3. Convenient production

4. Not easy to aging

5. Wide scope of application







Confirm the Size, Appearance, shell, connector could be customized as per request.



Customized Plastic Ultrasonic Converter With Different Frequency for weldingCustomized Plastic Ultrasonic Converter With Different Frequency for welding






FAQ:



1. What is vibrator?

Vibrator is connector of transducer, booster and welding horn.



2.What is the mechanical quality factor?

The ratio of mechanical energy stored during resonance of piezoelectric vibrators to that lost during a vibration period is called mechanical quality factor.
