20Khz Ultrasonic Converter Replacement Dukane 41S30 With Customized Connector

China 20Khz Ultrasonic Converter Replacement Dukane 41S30 With Customized Connector supplier
20Khz Ultrasonic Converter Replacement Dukane 41S30 With Customized Connector supplier 20Khz Ultrasonic Converter Replacement Dukane 41S30 With Customized Connector supplier 20Khz Ultrasonic Converter Replacement Dukane 41S30 With Customized Connector supplier 20Khz Ultrasonic Converter Replacement Dukane 41S30 With Customized Connector supplier 20Khz Ultrasonic Converter Replacement Dukane 41S30 With Customized Connector supplier

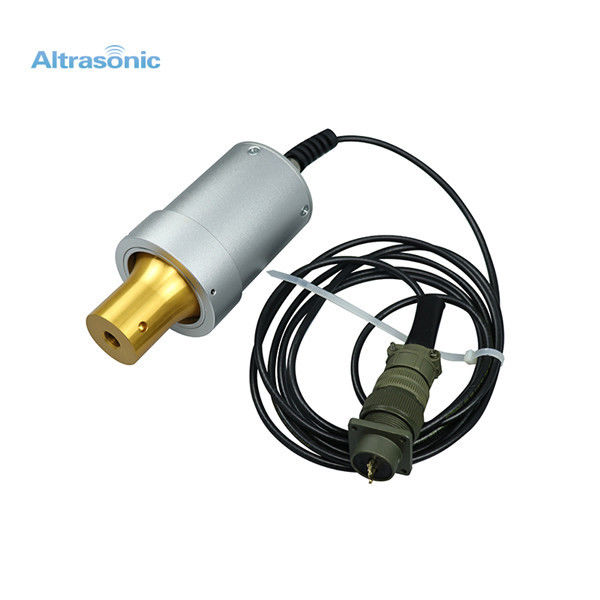

Large Image :  20Khz Ultrasonic Converter Replacement Dukane 41S30 With Customized Connector

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSD41S30

Payment & Shipping Terms:

Minimum Order Quantity: 2 units
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Converter Frequency: 20Khz
Ceramic Diameter: 50 Mm Capacitance: 11-17nf
Power: 2000w Application: Plastic Welding Machine
Ceramic Disc: 4pcs Material: Material: Titanium, Aluminum Materials Optional
Protective Out: Aluminum And Stainless Steel Optional

20Khz Ultrasonic Converter Replacement Dukane 41S30 With Customized Connector

Specifications:



ModelHSD41S30
Frequency20 khz
Output power1000 watt - 3000 watt
Joint bolt1/2-UNF
Ceramic disc Diameter50 mm
Quantity of Ceramic discs4 pcs
Capacitance11000 pf
Amplitude20 um
Applicationwelding machine


Description:

The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane 41S30​ is applied to Dukane type ultrasonic welding machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Replacement Item:


Item NoConnect Screw (Size)

Ceramic diameter
(mm)

Qty of ceramic
(PC)

Frequency(khz)Resistance(Ω)Color of ceramicCapacitance

Input Power
(W)

Branson CJ201/2-20UNF50619.9010Yellow200003300
Branson 5021/2-20UNF50619.9010Yellow200003300
Branson 402M8*1.2525439.6010Yellow4200800
Branson 4THM8*1.2525439.9010Yellow4200800
Branson 9021/2-20UNF40419.8510Yellow80001100
Branson 922J1/2-20UNF50619.9010Yellow200002200
Dukane 40KM8*1.2535239.805Gray3000800
Dukane 20K1/2-20UNF50219.5010Yellow110002000
Dukane 110-31221/2-20UNF50419.5010Yellow110002000
Dukane 110-31681/2-20UNF45219.5010Yellow4000800
Rinco 35KM8*1.2525234.8050Yellow2000900
Rinco 20KM16*250219.9050Yellow50003000
Telsonic 35KM8*1.2525435.005Yellow40001200
Telsonic 20K1/2-20UNF50420.003Yellow100002500


Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.

Competitive Advantage:


1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

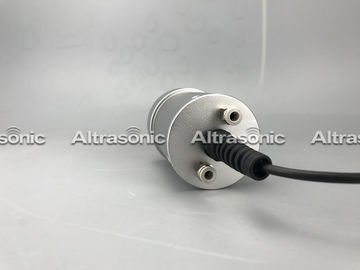

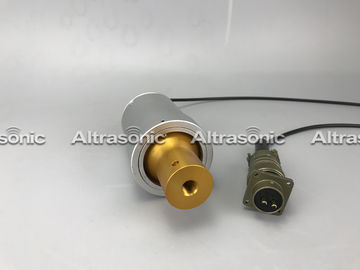

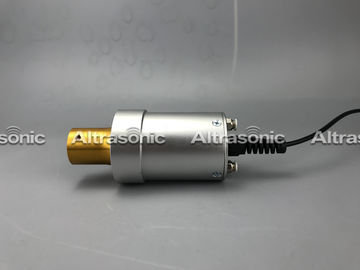

20Khz Ultrasonic Converter Replacement Dukane 41S30 With Customized Connector
