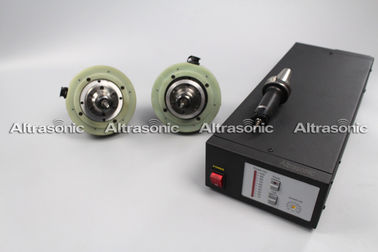

|Components:||Digital Generator, Transducer, Booster, Horn|

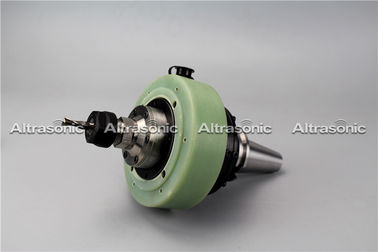

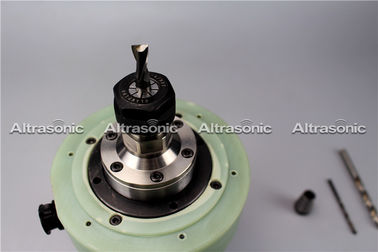

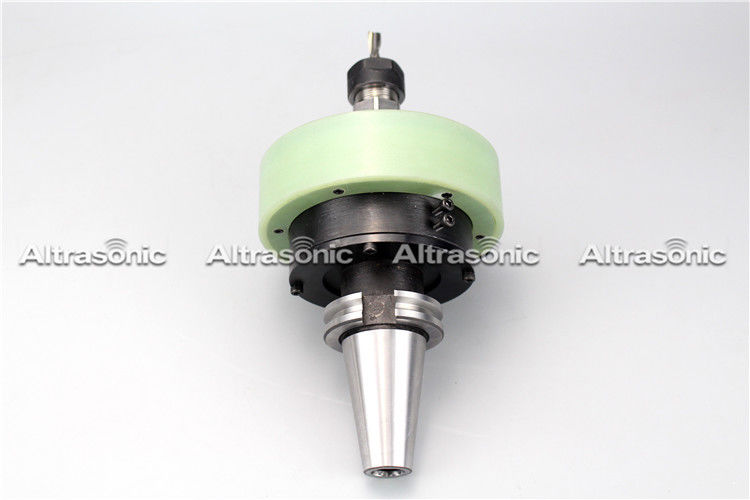

CAT 40 Collet Ultrasonic Assisted Drilling Apply In Multi-Axis CNC Machining Center
Resonance point amplitude: 10um or more;
Max Speed: 30000 RPM
Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;drilling hear Φ1~Φ6;
|Output Power||500 W|
|Switch||Handle or foot switch|
|Power Adjusting||Step or continuous|
|Working Time Control||24 Hours|
|Application||Ultrasonic drilling,milling grinding|
|Length of cable||5M|
Ultrasonic machining is changing the manufacturing industries with its superlative performance. The main reason why this machining process is used in the manufacturing area is because it evolves less heat in the process. All the operations done with the ultrasonic machining method are cost effective and best in results. Ultrasonic machining is an abrasive process which can create any material into hard and brittle form with the help of its vibrating tool and the indirect passage of abrasive particles towards the work piece. It is a low material removal rate machining process.
Ultrasonic Machining Results in Higher Material Removal Rate (MRR)
Q:What is rotary ultrasonic assisted machining ?
A:Ultrasonic assisted machining means ultrasonic vibration apply to traditional machine tool for drilling and milling especially ofr hard and brittle materials with perfect performance.
Q:What is ER collet?
A:The ER collet is a subtype of chuck that forms a collar around an object to be held and exerts a strong clamping force on the object when it is tightened, usually by means of a tapered outer collar. It may be used to hold a workpiece or a tool
Q:Can your ultrasonic machine assemble to my CNC machine?
A:Yes, you need to inform us the type of tool holder like BT/CTA/ISO/HSKA , or you can provide drawings that we will customized the same on our ultrasonic part to match your CNC machine.
