20Khz / 40khz Ultrasonic Drilling Machines With Handle / Foot Switch

China 20Khz / 40khz Ultrasonic Drilling Machines With Handle / Foot Switch supplier
20Khz / 40khz Ultrasonic Drilling Machines With Handle / Foot Switch supplier 20Khz / 40khz Ultrasonic Drilling Machines With Handle / Foot Switch supplier 20Khz / 40khz Ultrasonic Drilling Machines With Handle / Foot Switch supplier

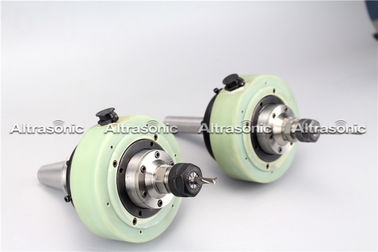

Large Image :  20Khz / 40khz Ultrasonic Drilling Machines With Handle / Foot Switch

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Power: 500W Frequency: 20Khz/40Khz
Generator: Digital Application: Ultrasonic Drilling
Components: Digital Generator, Transducer, Booster, Horn

Less Heat in the Ultrasonically-Assisted Machining (UAM) for Hard Material



Technical Parameters:

Resonance point amplitude: 10um or more;

Max Speed: 30000 RPM

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;drilling hear Φ1~6

Power: 500W



Frequency 20 Khz/40khz
Output Power 500 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic drilling,milling grinding
Generator Digital Generator
Length of cable 5M





Ultrasonic Machining



Ultrasonic machining is changing the manufacturing industries with its superlative performance. The main reason why this machining process is used in the manufacturing area is because it evolves less heat in the process. All the operations done with the ultrasonic machining method are cost effective and best in results. Ultrasonic machining is an abrasive process which can create any material into hard and brittle form with the help of its vibrating tool and the indirect passage of abrasive particles towards the work piece. It is a low material removal rate machining process.



Competitive Advantages:

  • Ultrasonic Drilling Machines have been developed in various models equipment.
  • Frequency, power can be real-time monitoring, power 30-99% adjustable, with automatic alarm protection, easy to operate;
  • Less than 4% weight loss in drilling on an average.



Less Heat in the Ultrasonically-Assisted Machining (UAM) for Hard Material
