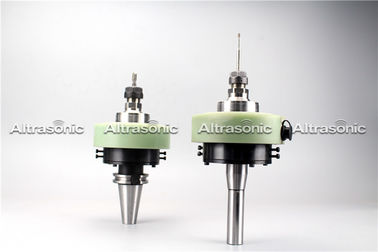

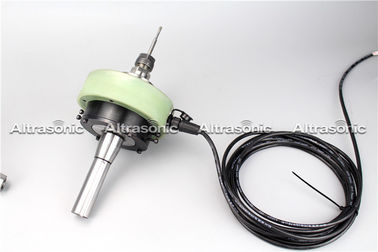

Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining

Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining
Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining

Large Image :  Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month

Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining

Description
Power: 500W Frequency: 20Khz/40Khz
Generator: Digital Application: Ultrasonic Drilling
Components: Digital Generator, Transducer, Booster, Horn
High Light:

ultrasonic vibration machine

,

ultrasonic drilling machine


Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining

Technical Parameters:
Resonance point amplitude: 10um or more;
Max Speed: 30000 RPM
Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;drilling hear Φ1~6


Frequency 20 Khz/40khz
Output Power 500 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic drilling,milling grinding
Generator Digital Generator
Length of cable 5M



Ultrasonic drilling:

Ultrasonic assisted drilling is a recently-developed technique, in which high-frequency (> 20 kHz) vibration is superimposed onto the movement of a standard drill bit in the axial direction, providing advantages including reduced drilling forces (reduction often in excess of 80%) and improved quality of drilled holes when compared to conventional drilling. Ultrasonic assisted drilling also achieves a reduction in entry and exit delamination size, but not in the expected proportion considering the observed reduction of drilling forces. A different mechanical process to that in conventional drilling may be driving the delamination in Ultrasonic assisted drilling, for example dynamic or thermal effects in addition to thrust and torque loads.

Competitive Advantages:


  • Ultrasonic Drilling Machines have been developed in various models equipment.
  • Frequency, power can be real-time monitoring, power 30-99% adjustable, with automatic alarm protection, easy to operate;
  • Less than 4% weight loss in drilling on an average.


Applications:


  • Various kinds of materials especially fragile rigid material.
  • Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.
  • Application area: machining industry, machine tool equipment manufacturing.
  • Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.


FAQ:

Q:What is rotary ultrasonic assisted machining ?
A:Ultrasonic assisted machining means ultrasonic vibration apply to traditional machine tool for drilling and milling especially ofr hard and brittle materials with perfect performance.

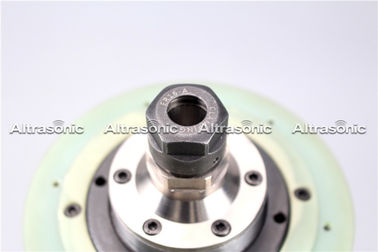

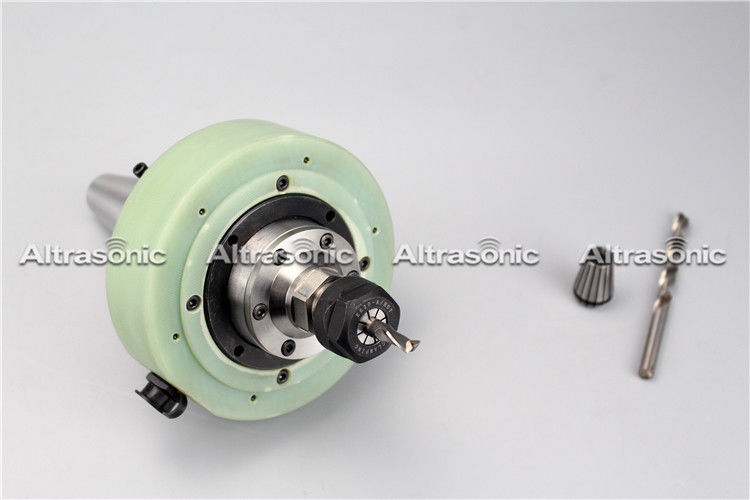

Q:What is ER collet?
A:The ER collet is a subtype of chuck that forms a collar around an object to be held and exerts a strong clamping force on the object when it is tightened, usually by means of a tapered outer collar. It may be used to hold a workpiece or a tool


Q:What is BT40 and HSKA63?
A:These are two different kinds of tool holder which used for connect to your CNC machine according to different size and type.



Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining 0


Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining



Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining 1Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining 2Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining 3Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining 4

Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining 5Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining 6Rotary Ultrasonic Milling Rum For Quartz And Alumina Ceramic Machining 7
