Zirconia Chrome Titanium Ultrasonic Assisted Machining 20Khz Ultrasonic Ceramic Machining

China Zirconia Chrome Titanium Ultrasonic Assisted Machining 20Khz Ultrasonic Ceramic Machining supplier

Large Image :  Zirconia Chrome Titanium Ultrasonic Assisted Machining 20Khz Ultrasonic Ceramic Machining

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Power: 500W Frequency: 20Khz/40Khz
Generator: Digital Application: Ultrasonic Drilling
Components: Digital Generator, Transducer, Booster, Horn

Newly defined 20Khz Ultrasonic Ceramic Machining for Zirconia Chrome Titanium Material





Technical Parameters:



Resonance point amplitude: 10um or more;

Speed: 3000 r / min or less

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;

Power: 500W

Frequency 20 Khz
Output Power 500 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 30 KG
Application Ultrasonic drilling
Generator Digital Generator
Length of cable 5M







Ultrasonic drilling



Ultrasonic assisted drilling is a recently-developed technique, in which high-frequency (> 20 kHz) vibration is superimposed onto the movement of a standard drill bit in the axial direction,

providing advantages including reduced drilling forces (reduction often in excess of 80%) and improved quality of drilled holes when compared to conventional drilling.

Ultrasonic assisted drilling also achieves a reduction in entry and exit delamination size, but not in the expected proportion considering the observed reduction of drilling forces.

A different mechanical process to that in conventional drilling may be driving the delamination in Ultrasonic assisted drilling, for example dynamic or thermal effects in addition to thrust and torque loads.







Competitive Advantages:

  • Ultrasonic system amplitude stability, continuous working time is long;
  • The use of ultrasonic digital control generator, all-digital circuit control, anti-interference ability;
  • Frequency, power can be real-time monitoring, power 30-99% adjustable, with automatic alarm protection, easy to operate;





Applications

  • Various kinds of materials especially fragile rigid material.
  • Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.
  • Application area: machining industry, machine tool equipment manufacturing.
  • Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.

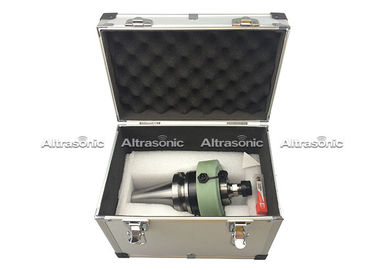

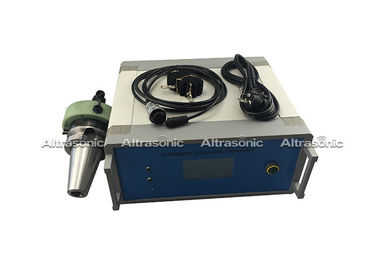

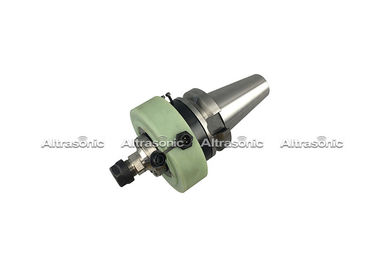

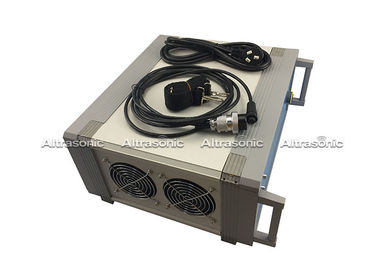

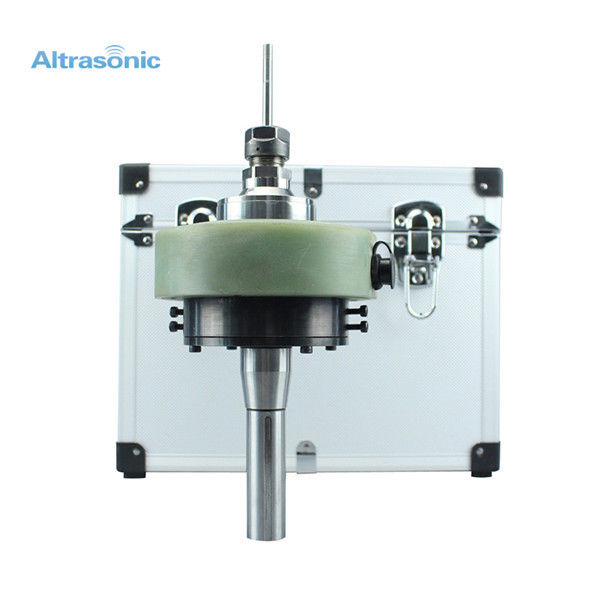

Zirconia Chrome Titanium Ultrasonic Assisted Machining 20Khz Ultrasonic Ceramic Machining



Newly defined 20Khz Ultrasonic Ceramic Machining for Zirconia Chrome Titanium Material

Zirconia Chrome Titanium Ultrasonic Assisted Machining 20Khz Ultrasonic Ceramic MachiningZirconia Chrome Titanium Ultrasonic Assisted Machining 20Khz Ultrasonic Ceramic Machining







Zirconia Chrome Titanium Ultrasonic Assisted Machining 20Khz Ultrasonic Ceramic Machining
