Detailed Product Description
Power: 500W Frequency: 20Khz
Generator: Digital Application: Machining

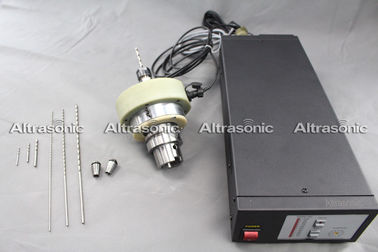

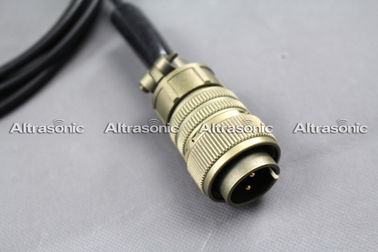

Components: Digital Generator, Transducer, Booster, Horn

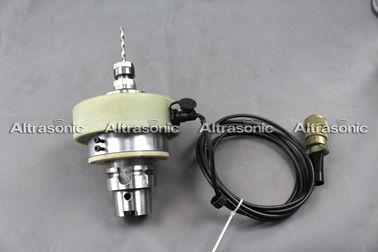

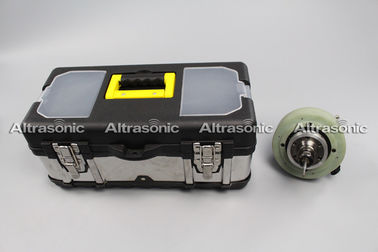

HSK63 20khz High Vabration and Spindle Ultrasonic Assisted Machining Equipment for CNC Machining Center





Specification:



Frequency 20 Khz
Output Power 1000 W
Voltage 220 V/110V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weignt 30 KG ( Determined by the size of the horn )
Generator Digital Generator





Ultrasonic milling is a kind of new method of process technology, is the ultrasonic vibration by adding high frequency micro-amplitude in general milling process, to change the machinable property of material. Ultrasonic milling device is constituted by generator, oscillator and horn.

Ultrasonic oscillator is the energy-gathered part to change and amplify the electric energy output by generator to mechanical energy, then pass to work piece. Ultrasonic oscillator can be designed as the structure which can clamp a certain range on the basis of requirement of practical application occasion.





Principle:



Ultrasonic machining process uses a power supply that converts conventional line voltage to 20KHz electrical energy.

This high-frequency electrical energy is provided to a piezoelectric converter that changes high frequency electrical energy into mechanical motion.

The ultrasonic motion from the converter is amplified and transmitted to the horn and cutting tool.

This causes the horn and attached cutting tool to vibrate perpendicularly to the tool face thousands of times per second with no side to side motion.

A recirculating pump forces E/Z Pump™ abrasive, suspended in a liquid medium, between the vibrating tool face and the workpiece. The abrasive particles strike the workpiece at 150,000 times their own weight.

These tiny abrasive particles chip off microscopic flakes and grind a counterpart of the tool face.



Applications:

  • Various kinds of materials especially fragile rigid material.
  • Processing plane, groove, all kinds of form surface (such as spline, gear and thread) and special surface of mould.
  • Application area: machining industry, machine tool equipment manufacturing.
  • Application occasion: manufacturing enterprise, universities and colleges, scientific research institution, mechanical equipment transformation industry.





Consumable part and working time



Ultrasonic milling consumable part and working time
CSXX-20100-BT40 vertical milling CSXX-20100-BT40 disk milling
consumable part working time consumable part working time
milling cutters 100h(8h/d) milling cutters 150h(8h/d)
carbon brush 6000h(8h/d) carbon brush 8000h(8h/d)



Work environment:

The environment: use it indoor;

Moisture: ≤85%RH;

Peripheral environment temperature: 0 ℃ - 40℃

The generator size: 450mm×300mm×135mm;

The space for use: the distance of the other objects to the power case should not be less than 150mm; to the heat dissipation port should not be less than 200mm.
