Product Details:
|
| Product Name: | Ultrasonic Spot Welding Machine | Frequency: | 35Khz |
|---|---|---|---|
| Power: | 800W | Inlet Power: | AC220V±10V Or AC110V±10V , 50/60HZ |
| Auotomatic Resonance Frequency Range: | ±1000hz | Working Environment: | +5~+50℃ |
| Keeping Environment: | -5~+70℃ | Net Weight: | 10Kgs |
| Max Current: | 15A | ||
| Highlight: | sonic welding machine,portable spot welder |
||

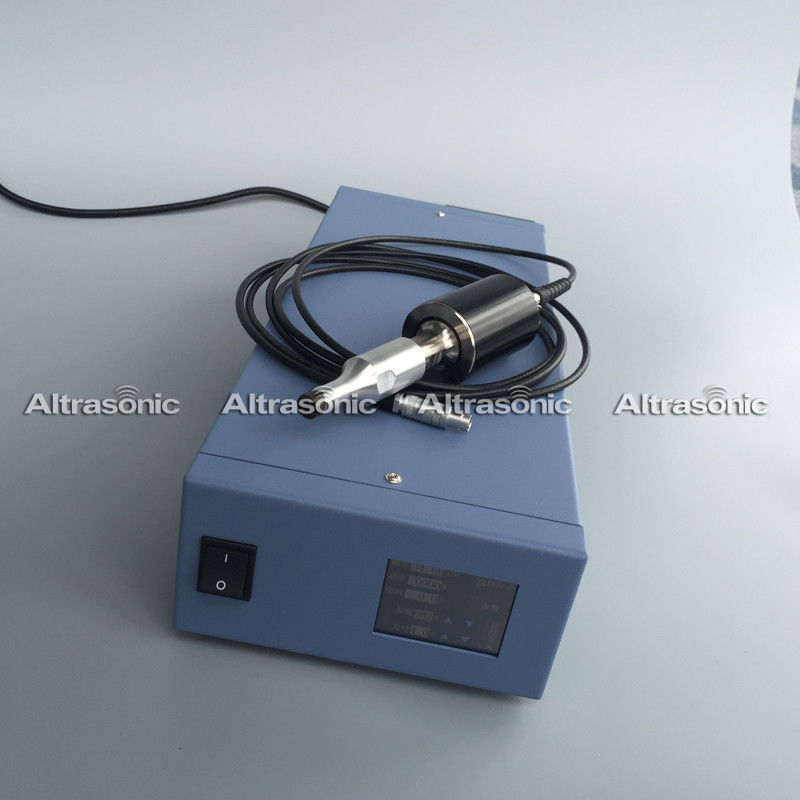

High Frequency 800W Handheld Cylinder Type Ultrasonic Spot Welder
Specifications:
| Model: | HS-GT35 |
| Frequency: | 35Khz |
| Horn: | customized |
| Weight: | 10KG |
| Generator: | digital generator |
Gun and Cylinder Type of Horn
Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.
Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.
Portable Ultrasonic Plastic Spot Welding Gun principle:
When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.
Applications in Different Areas:
Electronic and electrical appliances, auto parts, clothing and packaging, textile industry, environmental industry, medical equipment,the toy industry, communications equipment and other industries.
| Toy industry | Plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc |
| Electronic products |
Recording, audio tape boxes and core wheel, disk enclosure, mobile phone accessories, following, battery shell, chargers, valve control type sealed lead-acid battery maintenance, 3 inches floppy disk, U disk, SD card, CF card, USB connector, bluetooth; and rectifier transformers, switches and sockets, remote control, electronic swatter, pseudo-imitation caps, prepaid water meter meter, communications equipment,etc |
| Household appliances |
Electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle air-hsiang, computer, etc |
|
Stationery, daily necessities |
Stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box shell, the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning bottles sealed container |
| Car, motorcycle |
Battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual welding jacket, the car door welded baffle welding, automobile, car mats welding, automotive bumper repair welding |
|
The application of the sports industry |
Table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool table, treadmill roller rope skipping handle stepper, treadmill accessories, box jumps, gymnastics mats, boxing gloves, boxing sandbag Sanda protective gear, the path to indicate the brand, the X Display Stand and other sports equipment, etc |
| The packaging industry | Hollow crate welding, ziplock welded |
Competitive Advantage:
High Frequency 800W Handheld Cylinder Type Ultrasonic Spot Welder
Tag: ultrasonic spot welder,portable spot welder
