High Performance Portable 28Khz Ultrasonic Analog Spot Welder Gun Type

High Performance Portable 28Khz Ultrasonic Analog Spot Welder Gun Type
High Performance Portable 28Khz Ultrasonic Analog Spot Welder Gun Type High Performance Portable 28Khz Ultrasonic Analog Spot Welder Gun Type High Performance Portable 28Khz Ultrasonic Analog Spot Welder Gun Type

Large Image :  High Performance Portable 28Khz Ultrasonic Analog Spot Welder Gun Type

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GT28
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month

High Performance Portable 28Khz Ultrasonic Analog Spot Welder Gun Type

Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 28Khz
Power: 300-1000W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 10Kgs
Max Current: 15A
High Light:

portable spot welding machine

,

portable spot welder

Portable Gun Type High Performance 28Khz Ultrasonic Analog Spot Welder Applicating in Auto Dashboard



Specifications:



Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg
Digital generator

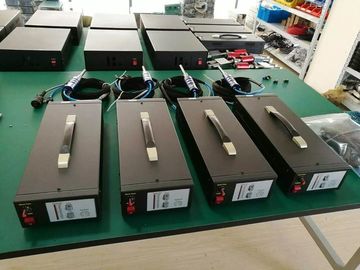

Analog generator



Gun and Cylinder Type of Horn

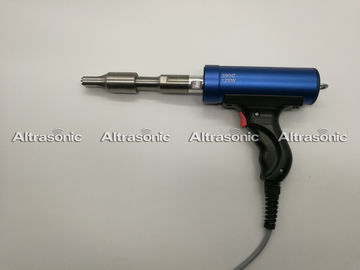

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.





Advantages in Autobody Spot Welding

  • Application in riveting, forming and welding
  • light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec



Applications in Automobile Different Parts



Ultrasonic Spot Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.



Amplifying and Different Type of Horn



Components of Ultrasonic Welding (Horn, Booster and Transducer)

They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.





There are three common horn material:

Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.

Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.

Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.





Portable Gun Type High Performance 28Khz Ultrasonic Analog Spot Welder Applicating in Auto Dashboard



High Performance Portable 28Khz Ultrasonic Analog Spot Welder Gun Type 0



High Performance Portable 28Khz Ultrasonic Analog Spot Welder Gun Type 1
