Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSFC255
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Wood case
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 200 Set per month

Blade Length 255mm Titanium Ultrasonic Food Cutter with External Air Cooling and PLC control System

Description
Frequency:: 20Khz Material:: Titanium
Blade:: 255mm Power:: 800W
High Light:

ultrasonic food cutting machine

,

food cutting equipment

Blade Length 255mm Titanium Ultrasonic Food Cutter with External Air Cooling and PLC control System



Description:

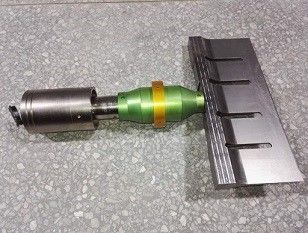

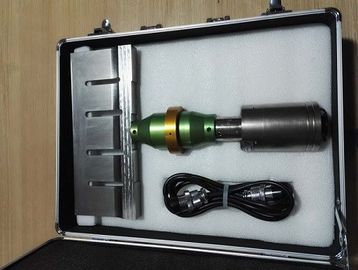

The ultrasonic food cutting machine (cutter) is composed of ultrasonic transducer (converter) with cover, booster, titanium blade and digital generator.

Ultrasonic cutters can smoothly cut difficult-to-cut materials.
They are small in size and do not require large installation areas. Special equipment is not required for the installation. They are small enough to be hand-held for many operations. They can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

The ultrasonic cutter is composed of a “transducer” that generates vibration and an “oscillator” that drives the transducer. A piezoelectric element is used for the transducer. When voltage is applied, the piezoelectric element displaces the transducer by a few micrometers. Periodically applying voltage generates vibration. Each object has its special frequency, by which the object is stable and easy to vibrate. By adding an external force that corresponds to that special frequency, a small force can obtain a large vibration. This phenomenon is called resonance.

In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to wring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.



Parameters:



FREQUENCY 20Khz
POWER 800W
INPUT AC110-240V, 50/60Hz
POWER CONTROLLER stepping or continuous
MATERIAL OF CUTTING HEAD , stainless steel, titanium alloy, alloy steel.
MACHINE WIGHT 15~18KG
ACCESSORIES foot switch, additional blade
COOLING DEVICE compressed air mouth can be installed.
CABLE LENGTH 3M or customized
FOOT SWITCH available







Advantages:

  • High energy conversion efficiency, more than 90%;
  • The vibration of the ultrasonic food processing system using high frequency wave to quickly cut food;
  • Provides a new way to cut piece, cutting, steering, and transfer alignment or different kinds of food;
  • Makes the cost of production flow minimization;
  • Especially for cutting high viscosity food;
  • Cutting is very hygienic;
  • The cut food looks neat and beautiful;
  • Suitable for automated assembly line, do not have to make a lot of changes to the original line, saving production costs.
