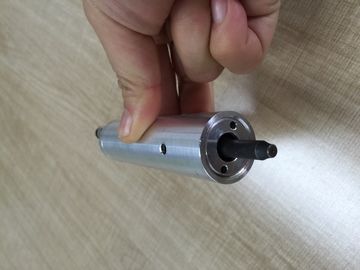

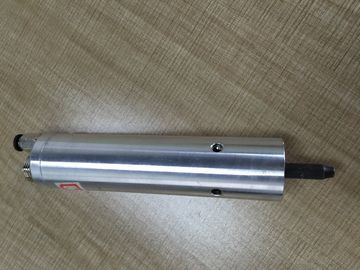

High Speed Wire Embedding Ultrasonic Plastic Welding Machine With Welding Horn

High Speed Wire Embedding Ultrasonic Plastic Welding Machine With Welding Horn
High Speed Wire Embedding Ultrasonic Plastic Welding Machine With Welding Horn High Speed Wire Embedding Ultrasonic Plastic Welding Machine With Welding Horn High Speed Wire Embedding Ultrasonic Plastic Welding Machine With Welding Horn

Large Image :  High Speed Wire Embedding Ultrasonic Plastic Welding Machine With Welding Horn

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSD77B-AB
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in wooden carton, and PE form inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

High Speed Wire Embedding Ultrasonic Plastic Welding Machine With Welding Horn

Description
Product Name: 60Khz Ultrasonic Oscillations Frequency: 60Khz
Frequency Tuning Method: Auto Tuning Output Power: 200W
Voltage: AC220-250V Net Weight: 10kgs
Application: Embeding Copper Wire On The Plastic Card Components: Ultrasonic Transducer, Generator And Embedding Horn
Power Adjusting Method: 20-100%
High Light:

plastic ultrasonic welding

,

ultrasonic plastic welder



60Khz Ultrasonic Oscillations for Embedding Thin Copper Wire onto Plastic Foil



Description:



During the past half year, with many effort from the research development section of our company, at present we have successfully promote the intelligent card welding equipment substantially. After promotion, comparison with the former one, the properties of the equipment has been promoted highly, more stability, better in search the frequency at more wide range, and much better appearance. On the process using the former 60K equipment, with the damage of the welding horn, the frequency would be altered.(the frequency is decided by the size of the product).When the frequency is altered to a certain degree, the ultrasonic generator would be difficult to coincide with the frequency, then influencing to the normal running of all the ultrasonic system.



Specifications:



Components and Parts Ultrasonic digital generator
Booster
Converter
Embedding / welding horn
Protective Sleeve (Nylon and Aluminum optional)
HF Cable
Power cord



Principle:



High Speed wire embedding with multiple embedding heads. Using the latest in linear servo technology and ultrasonic embedding units coupled together with vision cameras the wire embedding system is unrivalled in its speed, accuracy and the quality of antennae that it produces. Capable of working with a range of materials and wire diameters and an easy to use interface making solid wire antennas was never so easy.



Applications:



provide a range of flexible and efficient machine solutions for processing RFID inlays used in the secure eID (ePassports, eID cards, eHealth cards) & ePayment sectors as well as the contactless card markets.



Main advantages:

  1. Steady welding point, completely eradicate insufficient solder technically.
  2. The size of welding spots is the same, equality line, good effect on uniformity.
  3. The welding spot is small, wouldn’t increase the weight of the coil, easy to do lamination and encapsulation.
  4. To leave out the immersion tin step before doing welding, save an operator.
  5. After skilled in welding, much faster than the way to use searing iron to do weld.
  6. On the process on manufactory, there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.
  7. To select the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.
  8. Low power consumption, to save production cost for manufactory enterprise.

60Khz Ultrasonic Oscillations for Embedding Thin Copper Wire onto Plastic Foil

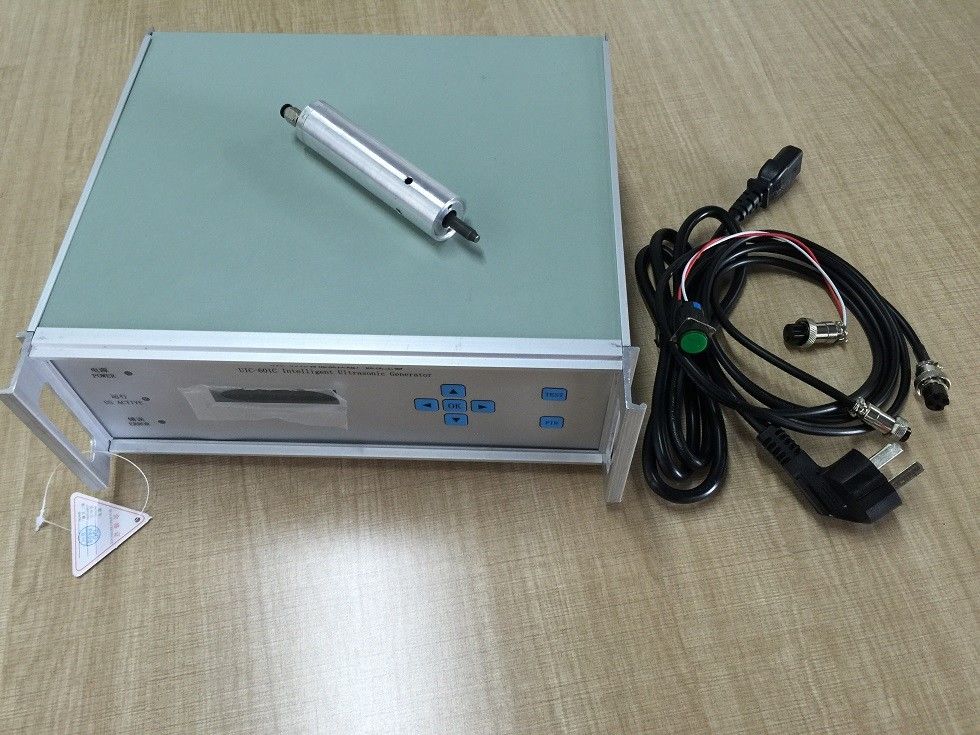

High Speed Wire Embedding Ultrasonic Plastic Welding Machine With Welding Horn 0

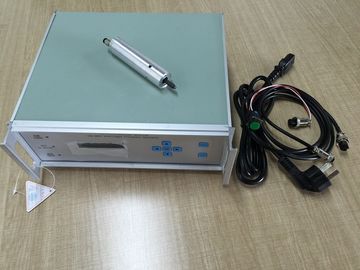

High Speed Wire Embedding Ultrasonic Plastic Welding Machine With Welding Horn 1
