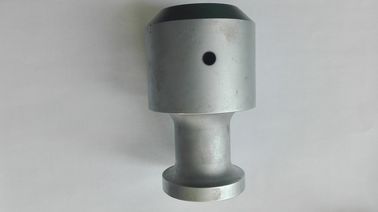

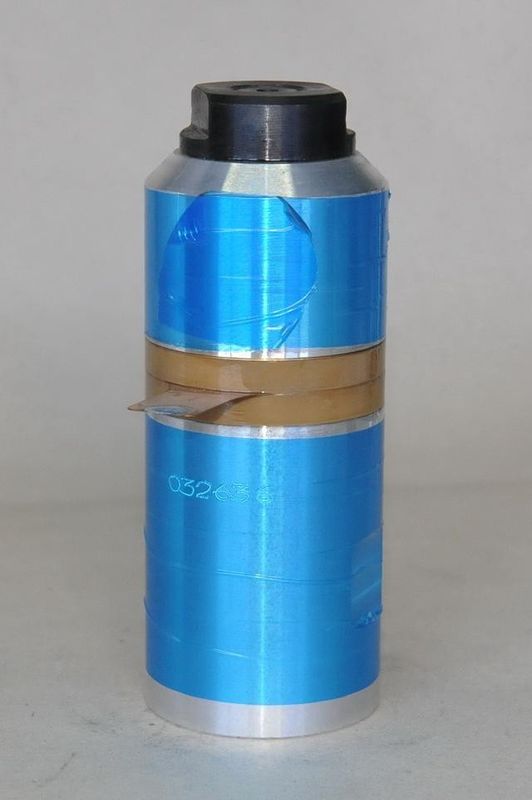

Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound

Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound
Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound

Large Image :  Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-2Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month

Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound

Description
Product Name: 20Khz Ultrasonic Transducer Frequency: 20Khz
Ceramic Diameter: 50 Mm Power: 900W
Application: Welding System Amplitude: 8 Um
Ceramic Disc: 2 Pcs Material Of Booster: Titanium, Aluminum, Steel Materials Optional
Protective Housing: Aluminum And Stainless Steel Optional
High Light:

ultrasonic piezoelectric transducer

,

high frequency ultrasonic transducer



Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound



Specifications:



Model HS-5020-2Z
Frequency 20 khz
Output power 900 watt
Joint bolt M18x1.5
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 2 pcs
Capacitance 18.5-20nf, 22.5-25nf
Amplitude 8um
Application welding machine



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.

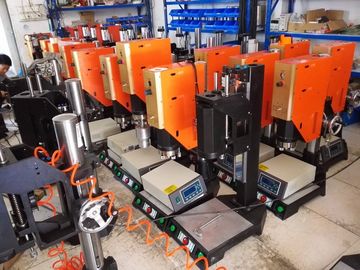

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.







Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.


Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound

Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound 0

Welding System 20 Khz Ultrasonic Transducer , Frequency High Power Transducer Ultrasound 1
