28 Khz 500W Ultrasonic Nylon Bag Sealer , High Power Ultrasonic Welding Machine

28 Khz 500W Ultrasonic Nylon Bag Sealer , High Power Ultrasonic Welding Machine
28 Khz 500W Ultrasonic Nylon Bag Sealer , High Power Ultrasonic Welding Machine 28 Khz 500W Ultrasonic Nylon Bag Sealer , High Power Ultrasonic Welding Machine

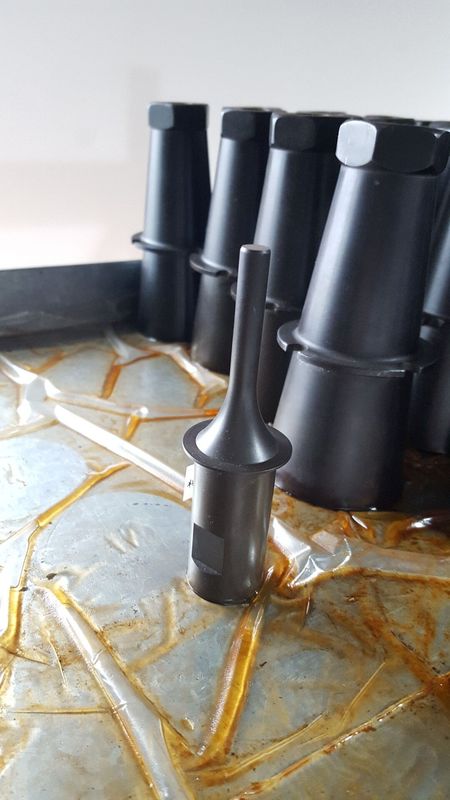

Large Image :  28 Khz 500W Ultrasonic Nylon Bag Sealer , High Power Ultrasonic Welding Machine

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS - T3028
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 5000 Set per month

28 Khz 500W Ultrasonic Nylon Bag Sealer , High Power Ultrasonic Welding Machine

Description
Frequency: 28khz Max. Output Power: 500watt
Application: Tea Bag Sealing / Closing Frequency Tuning Method: Frequency Tuning Method
Components: Ultrasonic Transducer And Generator Power Adjusting Method: 30%-99%
Net Weight: 10kg
High Light:

ultrasonic sealer

,

ultrasonic sewing machine

28Khz 500W Ultrasonic sealing machine nylon bag sealing equipment



Description:



The ultrasonic packing machine for pyramid tea bag closing is composed of ultrasonic parts, ultrasonic generator, turntable with Film clip cylinder MXH16-40 4unit, Slit cylinder CY3R20-100 1unit, Feed cylinder 50*90 1unit, and other parts.

The ultrasonic parts is core parts of the packing machine. Perfect combine with the ultrasonic welding principle, the tea bag nylon materials with the thermoplastic

features, so it can be good sealing by ultrasonic heating and vibration.



Applications:



Packaging for Medicine, food and chemical industries. (Triangle bag tea packaging machine manufacturers)

Small particles like tea, herbal (medicinal) tea, slimming tea, coffee and Chinese traditional medicine etc.

Applicable packing materials:

 Nylon, polyester mesh fabric, non-woven fabrics and all materials can be sealed by ultrasonics.



Produce speed 35-40bags/min
Tea content ≤3±0.5 g/bag
Tea request Tea length≤15㎜,assumes the platy, otherwise the weighing precision will drop.
Bag paper request Label line nylon or adhesive-bonded cloth(picture sample will be enclosed)
Roll quantity 1
Rolled paper core inside diameter Φ76㎜
Rolled outer diameter ≤Φ400㎜
Seal cutting World newest craft electricity pulse to seal cuts
Seal cutting equipment 2 sets
Standard electric appliance configure Pneumatic element,button,exchange contact device
Source pressure ≥0.6Mpa
Motor power Approximately 1.1kw(380v)
Operate person 1
Machine size L800*W700*H2000(mm)
Machine weight 800kg
Unit Price USD13500



Competitive Advantage:



1. Safety and reducing the redundant edge sealing width; can easily connect the outer packing .

2. Sealing and Cutting speed, 3000 bags / hour, cost savings.

3. Simple operation, easy to install on machine.





High power ultrasonic packing machine for pyramid tea bag closing , cutting and sealing plastic sheets





28 Khz 500W Ultrasonic Nylon Bag Sealer , High Power Ultrasonic Welding Machine 0

28 Khz 500W Ultrasonic Nylon Bag Sealer , High Power Ultrasonic Welding Machine 1
