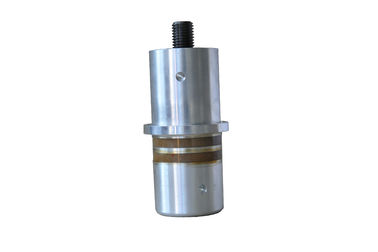

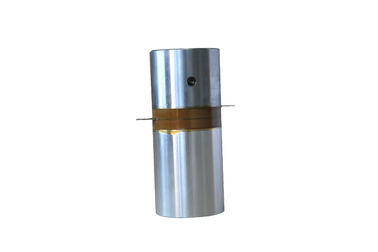

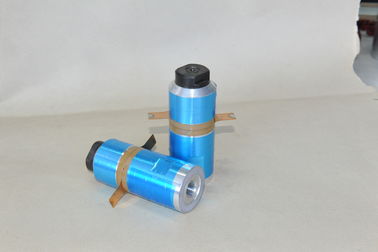

Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer

Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer
Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer

Large Image :  Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-2Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 10,000 units per month

Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer

Description
Product Name: Ultrasonic Transducer Frequency: 20 Khz
Ceramic Diameter: 50 Mm Power: 800 Watt
Application: Welding System Amplitude: 8 Um
Ceramic Disc: 2 Pcs Material Of Booster: Titanium, Aluminum, Steel Materials Optional
Protective Housing: Aluminum And Stainless Steel Optional
High Light:

ultrasonic piezoelectric transducer

,

high frequency ultrasonic transducer



Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer



Specifications:



Model

HS-5020-2Z

Frequency

20 khz

Output power

800 watt

Joint bolt

M18x1.5

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

2 pcs

Capacitance

18.5-20nf, 22.5-25nf

Amplitude

8um

Application

welding machine





Description:



The 20Khz 2000W Piezoelectric Ultrasonic Transducer / Ultrasonic Oscillator for sonochemistry system is applied to different type ultrasonic homogenizer, disperser, cell crusher and other sonochemistry system. And can be connected with different type probe.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven
 fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.





Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Industrial Application :



20Khz 2000W Piezoelectric Ultrasonic Transducer / Ultrasonic Oscillator for sonochemistry system







What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer

Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer 0

Chinese Type Ceramic Ultrasonic Welding Transducer Ultrasound Transducer 1
